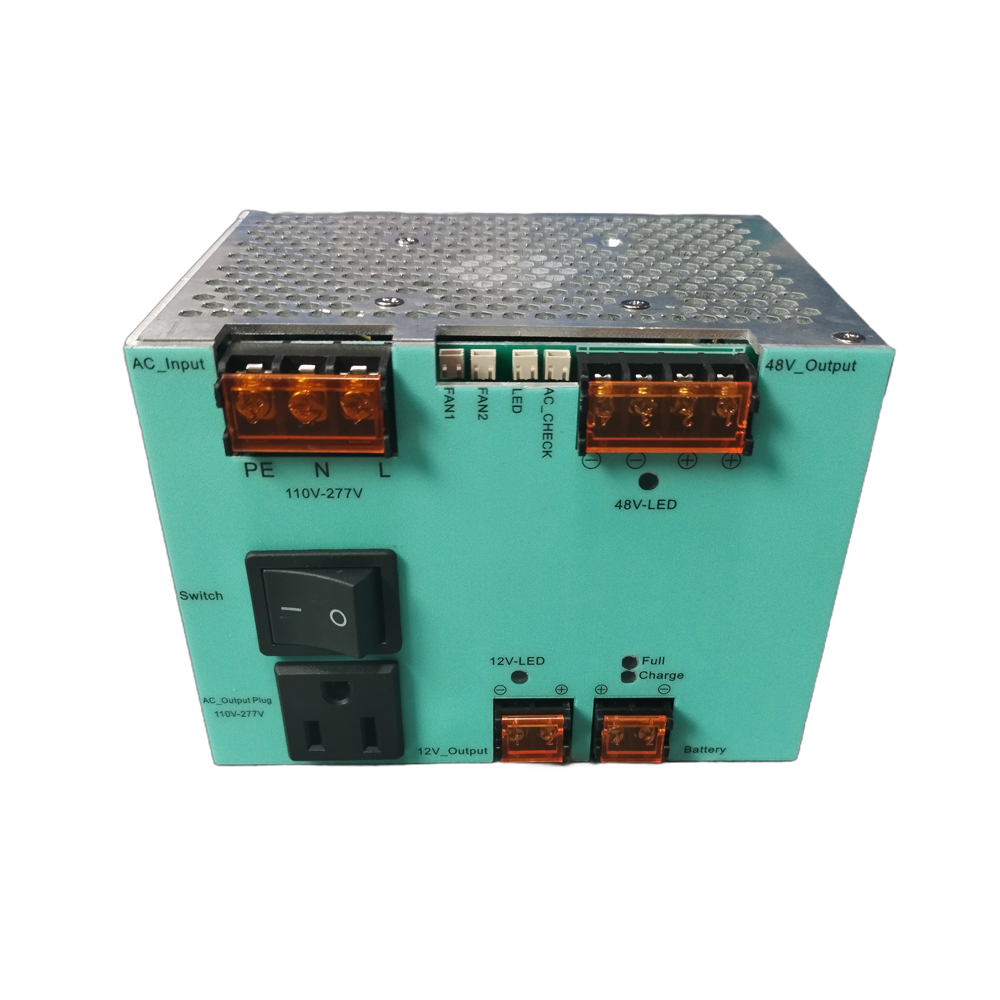

360W PCM with Battery Charge

Model ：

GG-PCM360

Introduction

Specification

① Wide Voltage Input AC110-277V 50/60Hz;

② Integrated Design, Multiple Voltage Outputs;

③ DIN-Rail Mounting;

④ Built in Temperature control module, Upto 45 ° Fans Work.DC12V Powered Cooling Fan Interfaces;

⑤ DC12V LED Output for External Flashing Lights;

⑥ Built in 6KV Lightning Protection;

⑦ DC48V/150W Dual Outputs;

⑧ DC12V 60W Output;

⑨ Battery Charging, Connecting 48V Batteries (Lead-Acid, Ternary, Lithium Iron Phosphate);

⑩ USA Standard AC Power Socket 1PCS.

C Input	110-277V MAX:1.5KW
DC48V Output	3A(MAX 150W)
DC12V Output	5A(MAX 60W)
Battery Charging Output	48-56V ADJ (MAX150W)
Battery Types	Lead Acid Battery 48V (12V 4S) Charging Voltage: DC 55.2V Ternary Lithium Battery 48V (13S) Charging Voltage: DC 54.6V Lithium Iron Phosphate Battery 48V (14S) Charging Voltage: 51.1V Lithium Iron Phosphate Battery 48V(14S-15S) Charging Voltage: 51.1V-55.5V
External Fan Power Output	DC12V/1A, 2 Ports
External Led Power Output	DC12V/1A, 1 Port
UPS Signal Output	AC Power Supply is Normally Open， Battery Powered Normally Closed.
Enclosure Material	Aviation Aluminum Alloy
Dimension	L:110 W:140 H:100(MM)
Product Weight	1.2KG
Working Temp.	-25°to 60°
Installation	DIN Rail
Certificates	FCC,ETL
