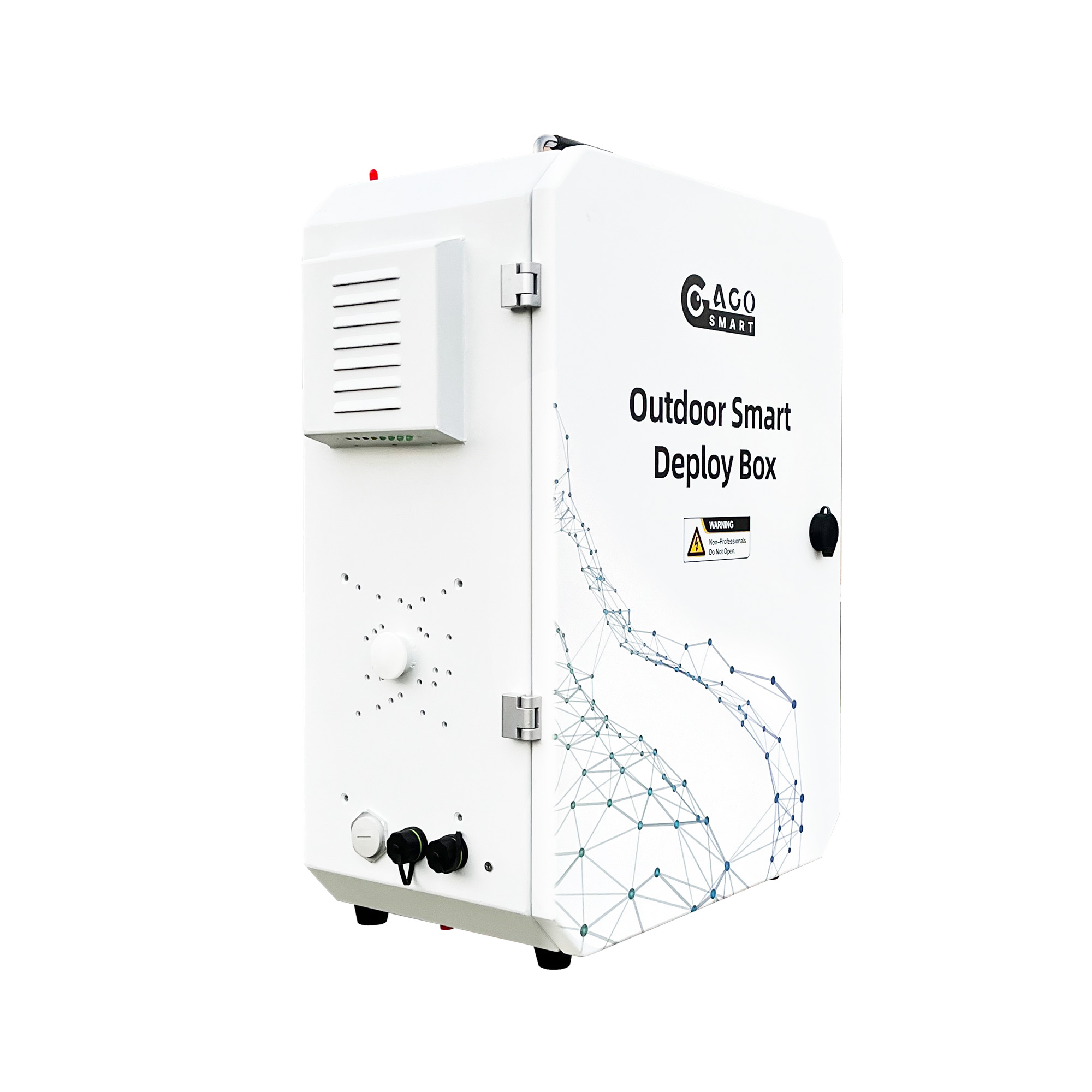

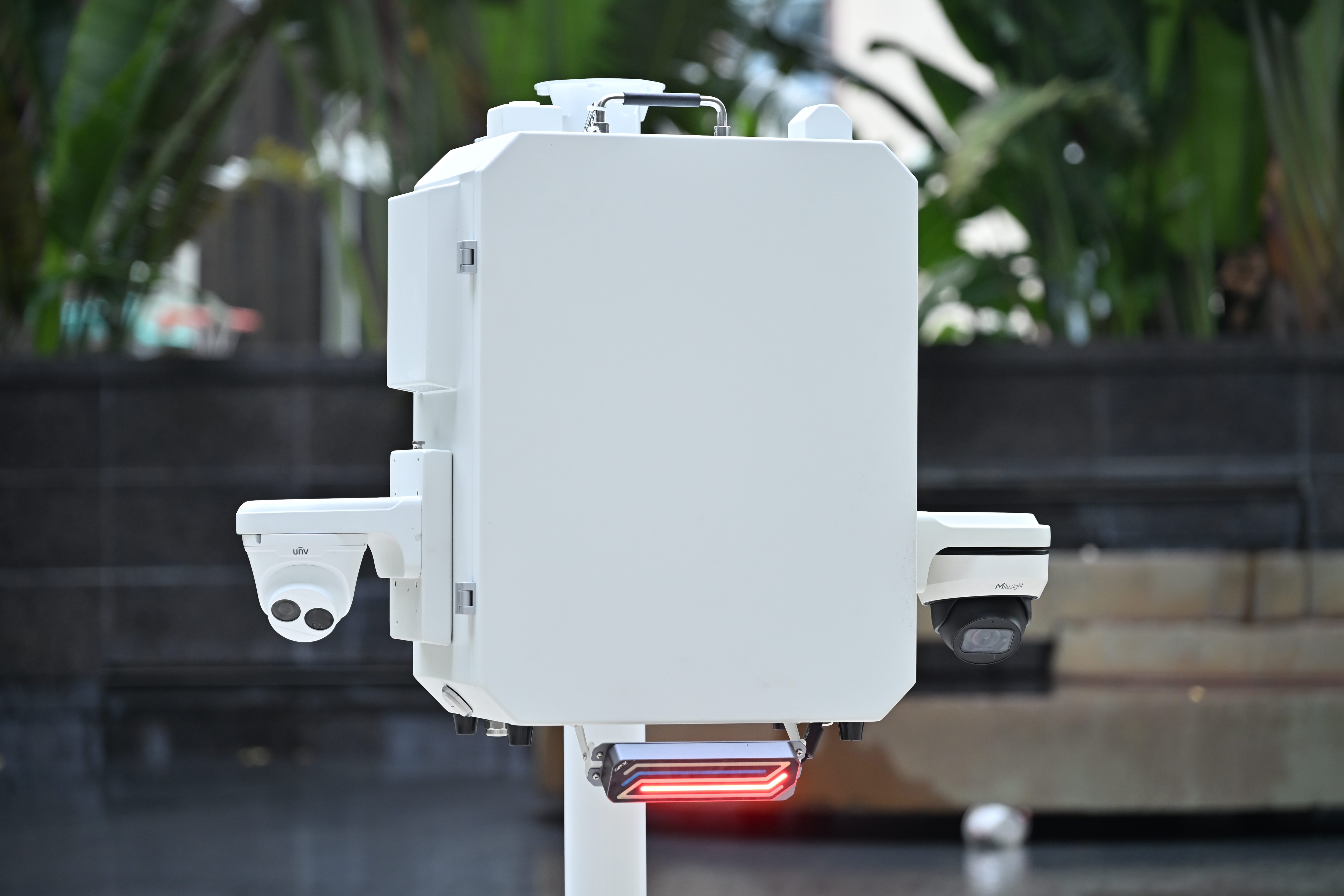

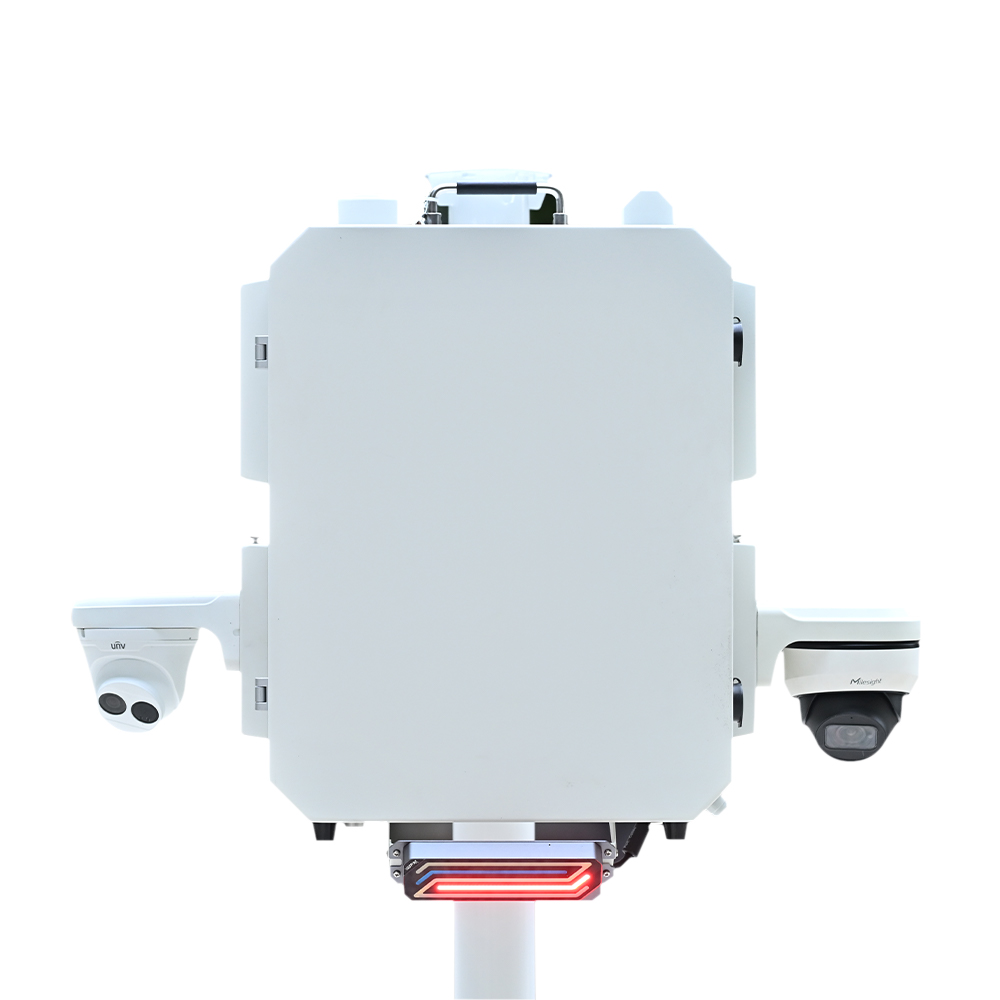

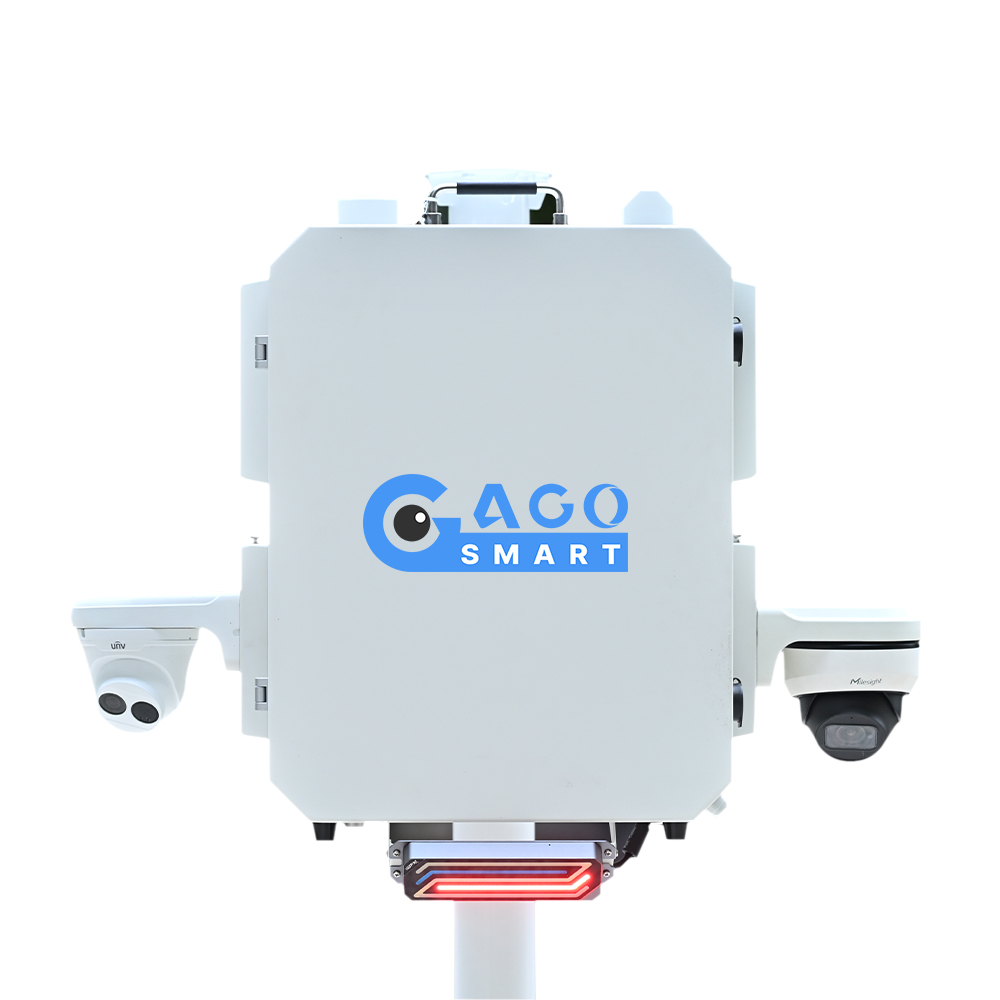

DD3 Box

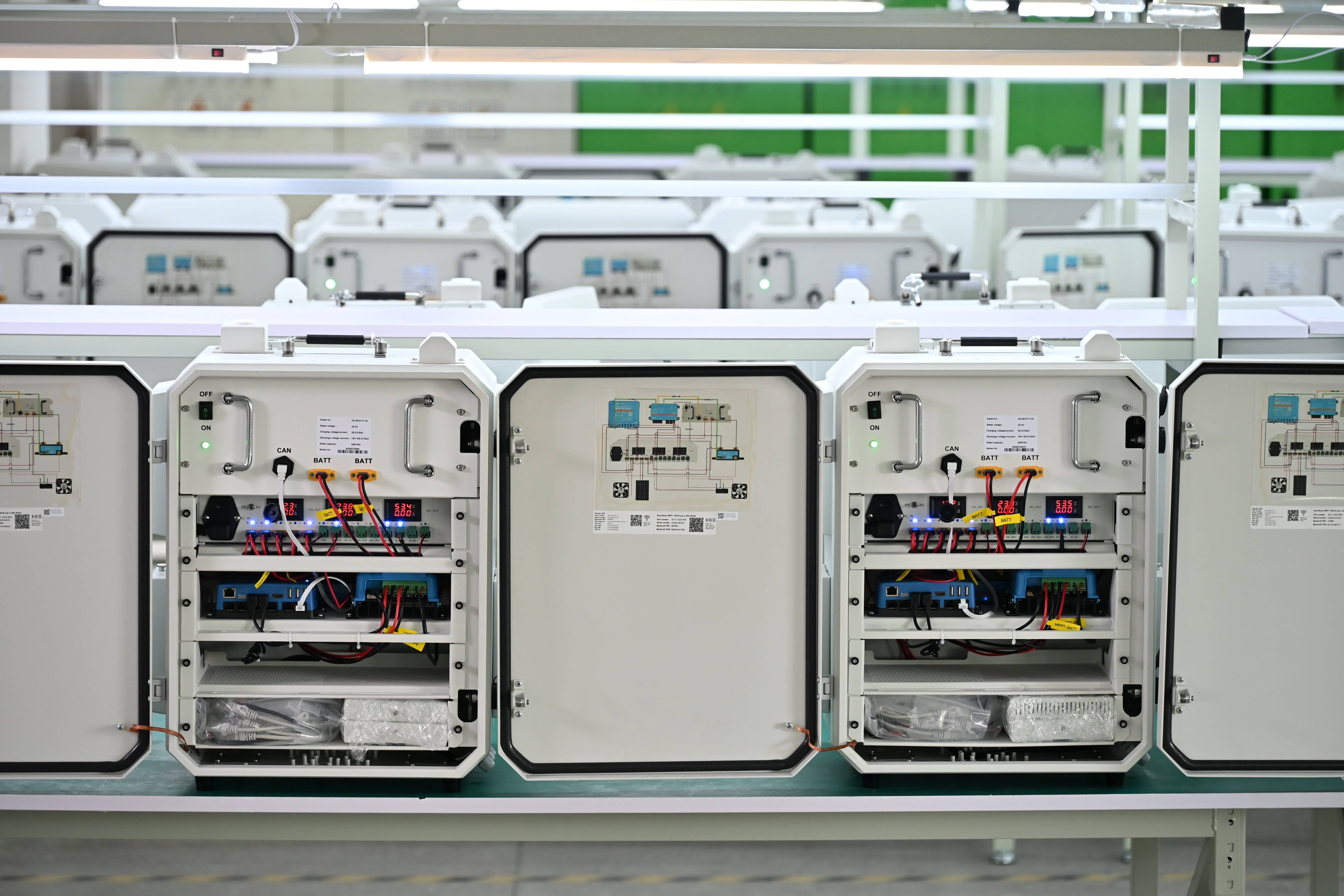

Introduction

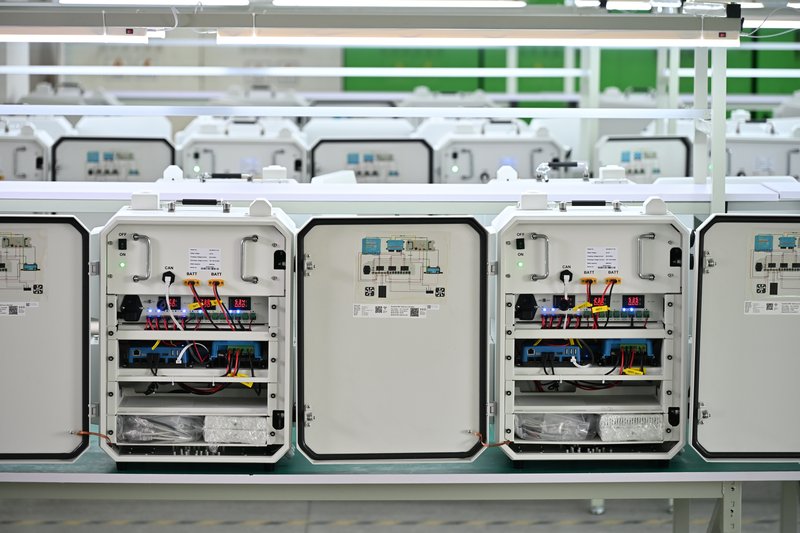

Specification

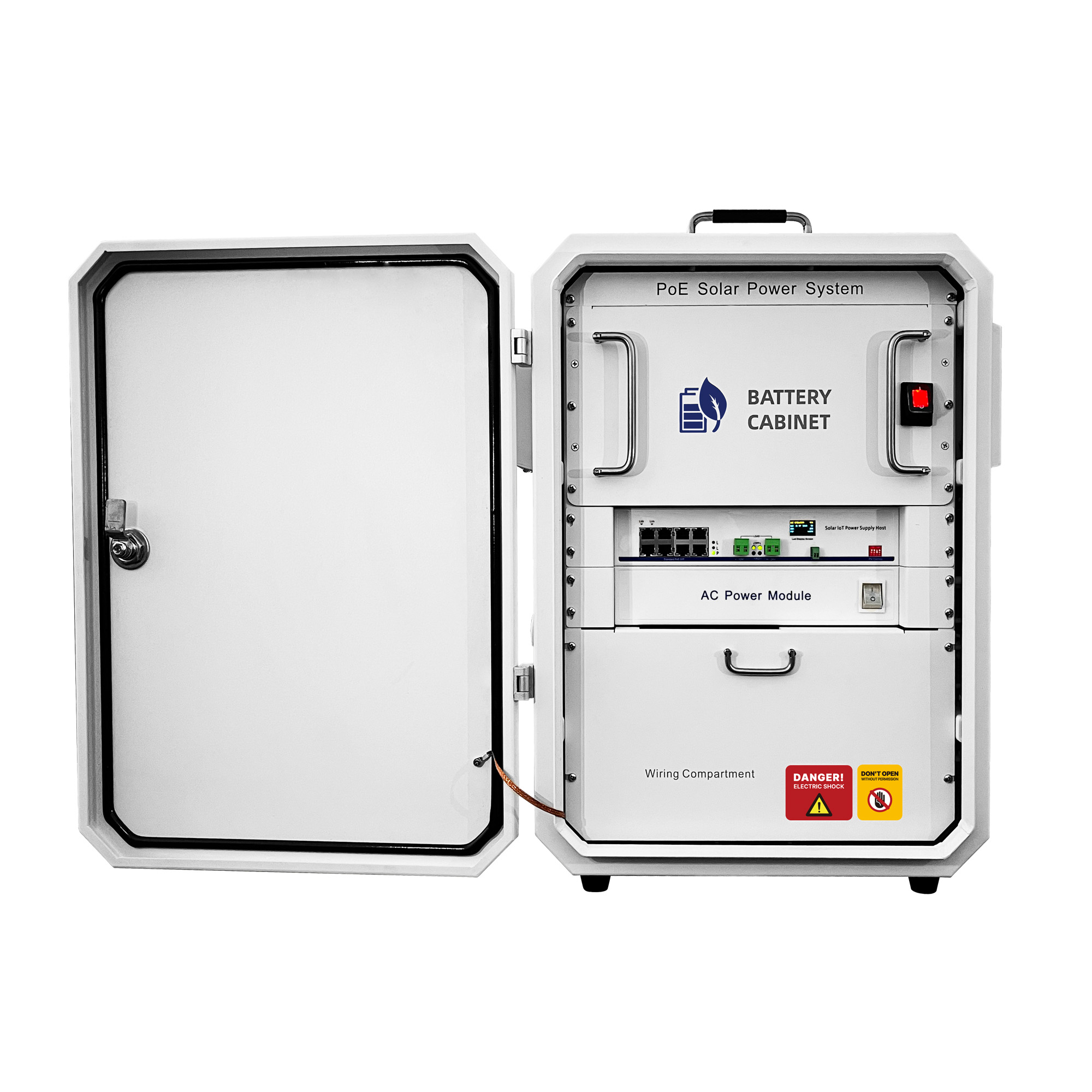

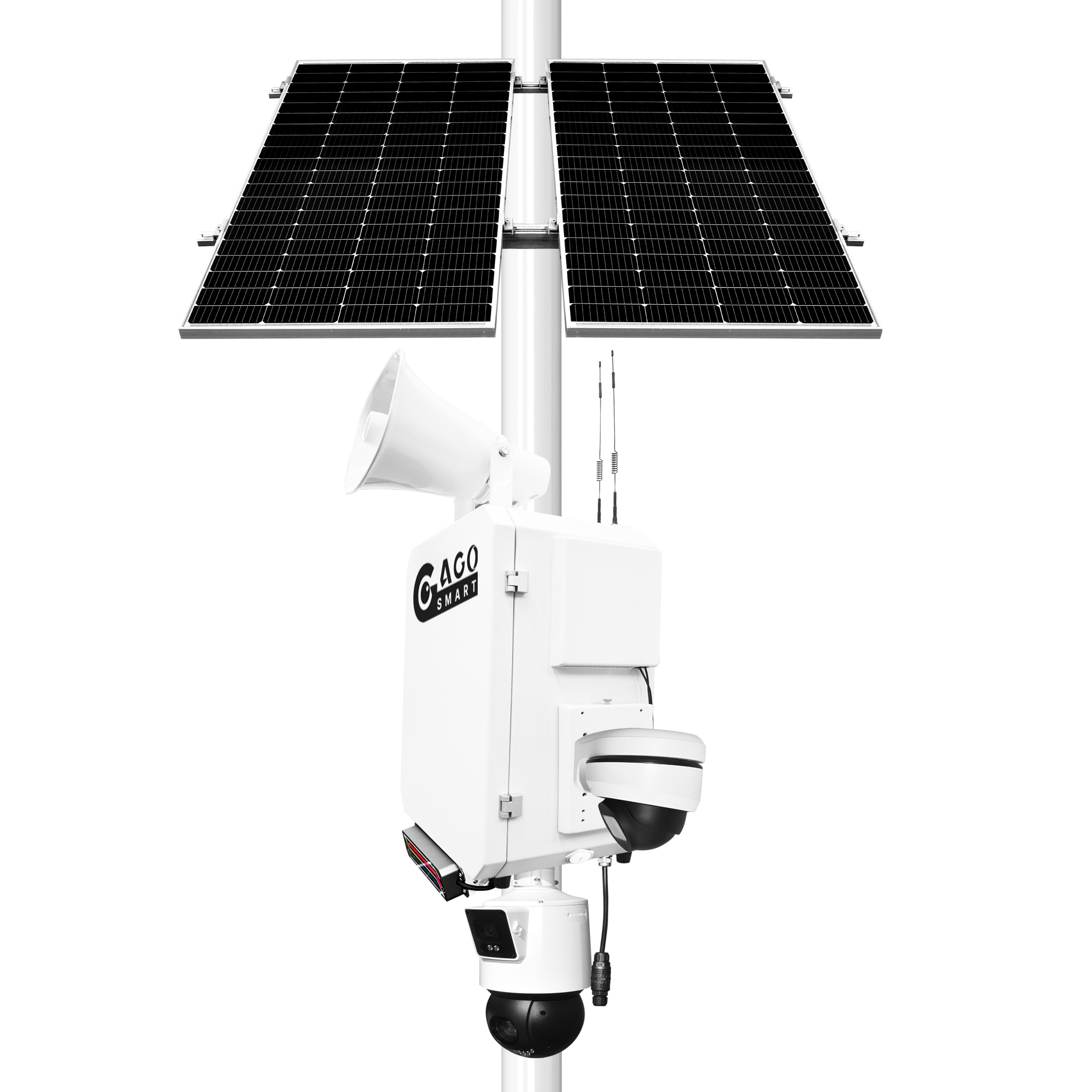

① Support AC110V-270V Input or Solar Panel Power(240W); Switch Button for Power Input Channel Directly;

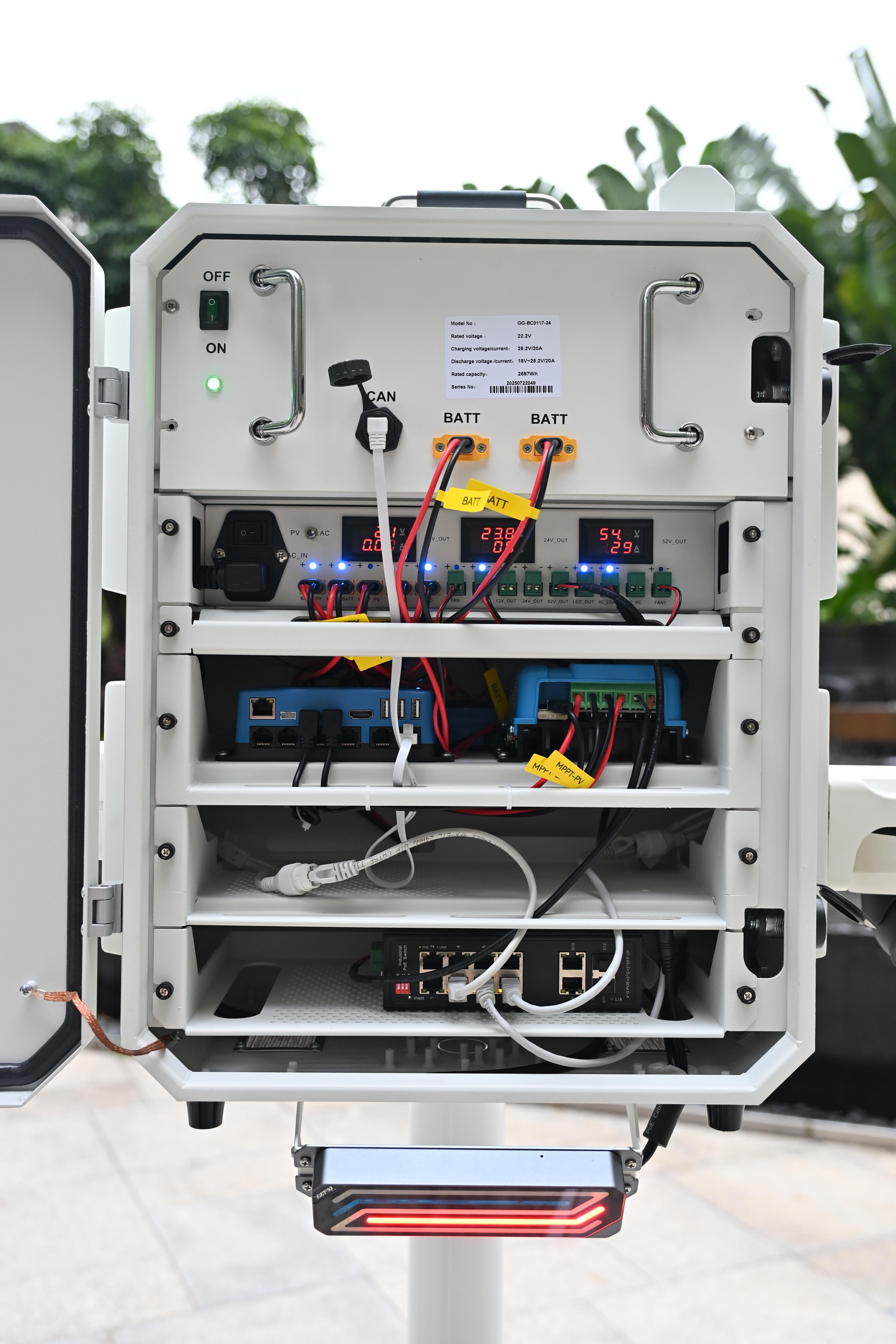

② Built-in 24V/117Ah Ternary Lithium Battery, Powered by AC or Solar Panel;

③ Built-in MPPT Solar Controller with 99% Tracking Efficiency and with OLED Display and RS485 Port;

④ Built-in 8CH Industrial PoE Switch(Each Port BT90W,Total 240W Max);

⑤ Built-in Power Charger AC 110-270V with UL Listed;

⑥ DC12V/6A and DC24V/6A Output Terminals;

⑦ Built-in 2PCs Cooling Fans Controlled by Temp Controller Inside PoE Switch;

⑧ With Led Indicators to Remind Whole System Power Status(at the down side of left pocket)

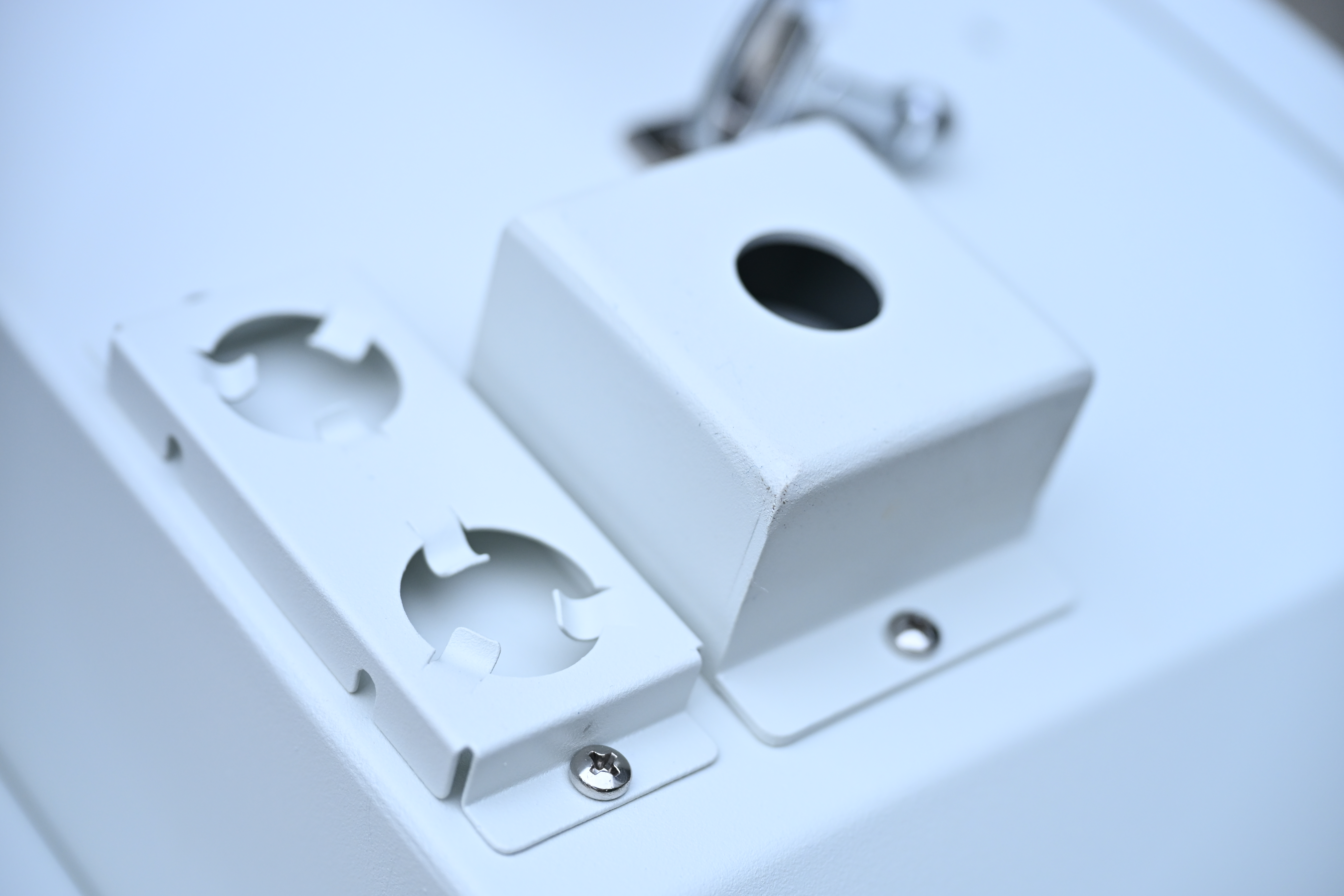

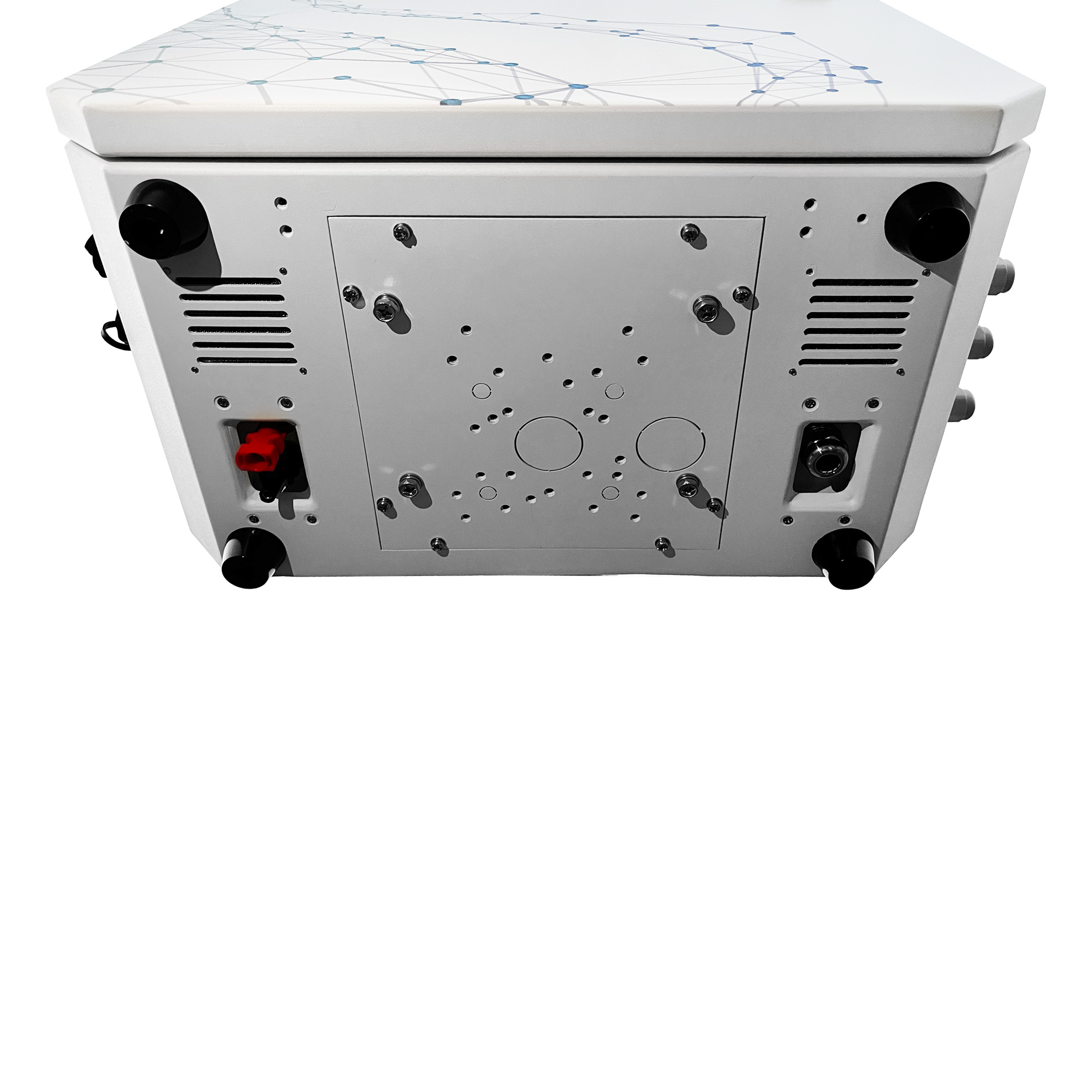

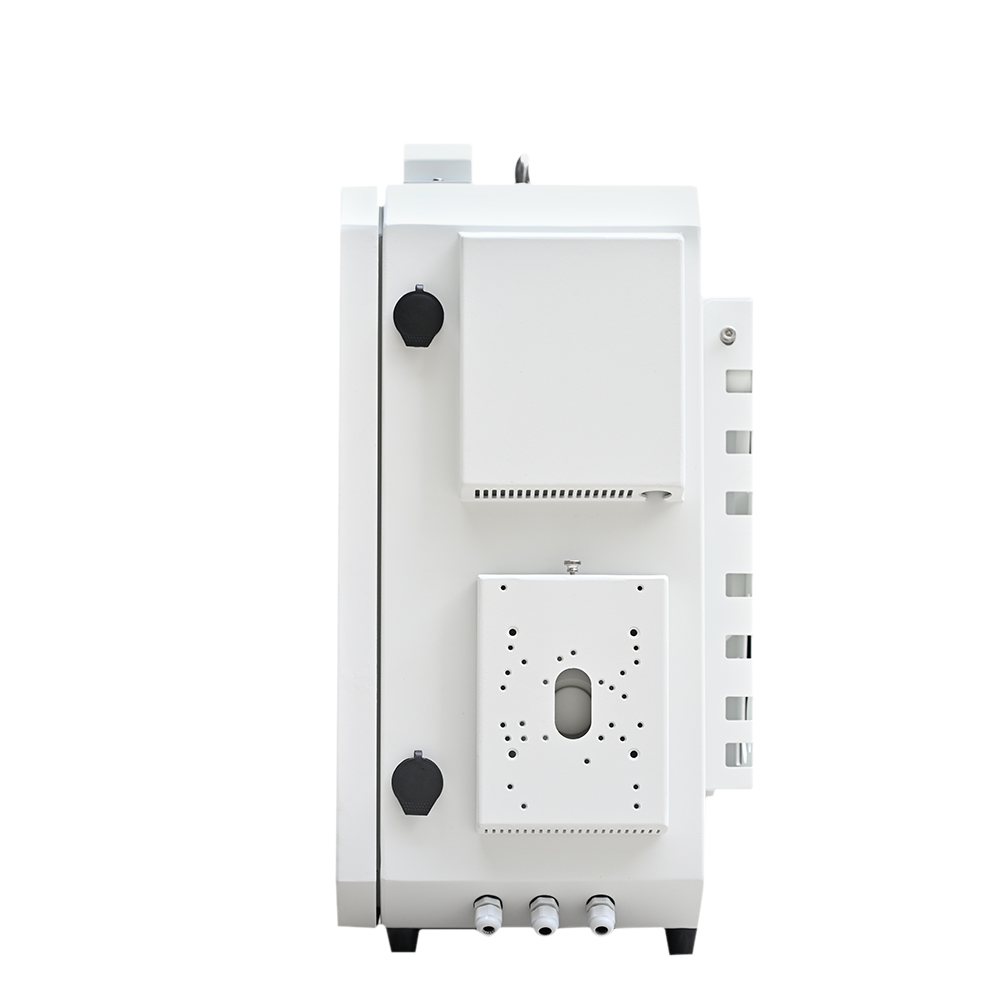

⑨ With NPT 3/4” Knockout and Water-Proof RJ45 Fast Connectors,PG16 Connectors;

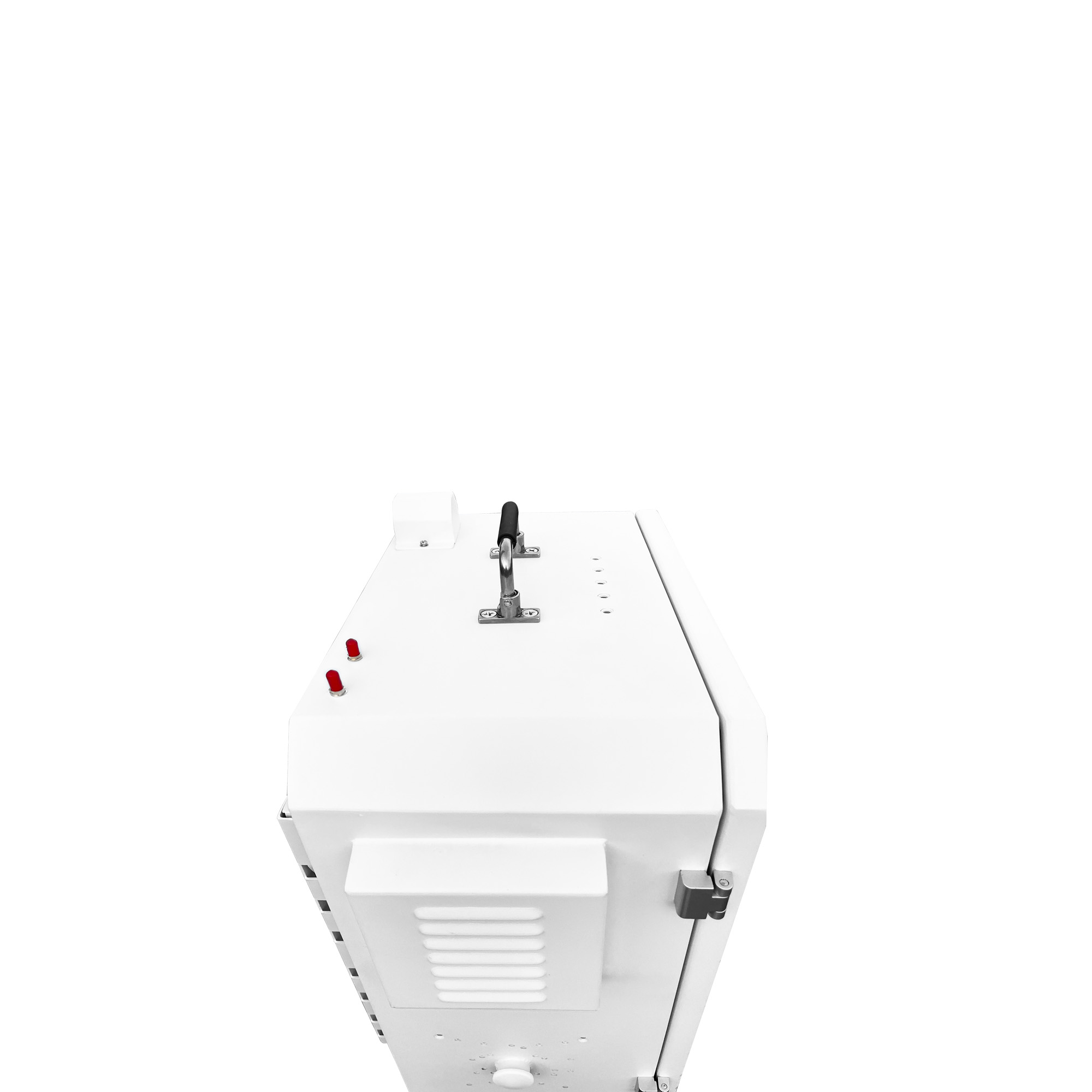

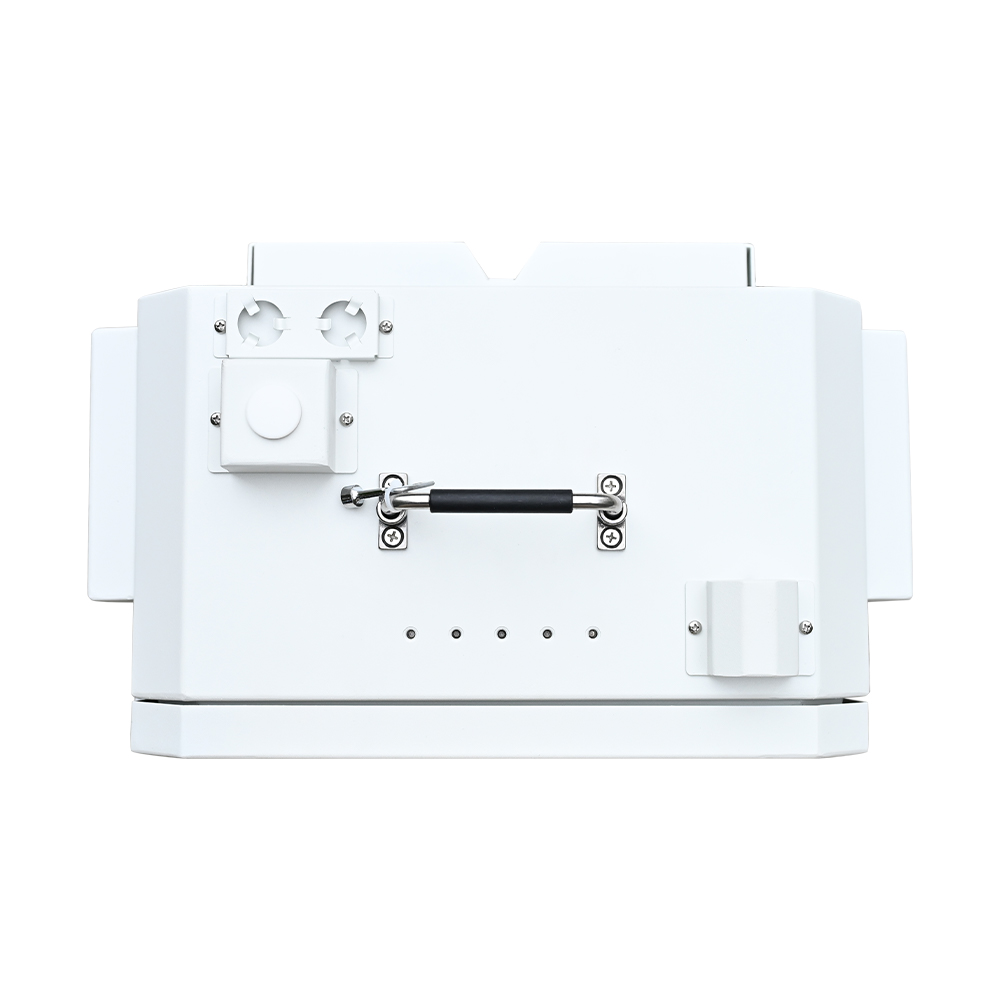

⑩ With 4G Antennas Fast Installation Connectors and Hand-Carrier, with IP Horn Speaker Installation Position and Cable-through Design.

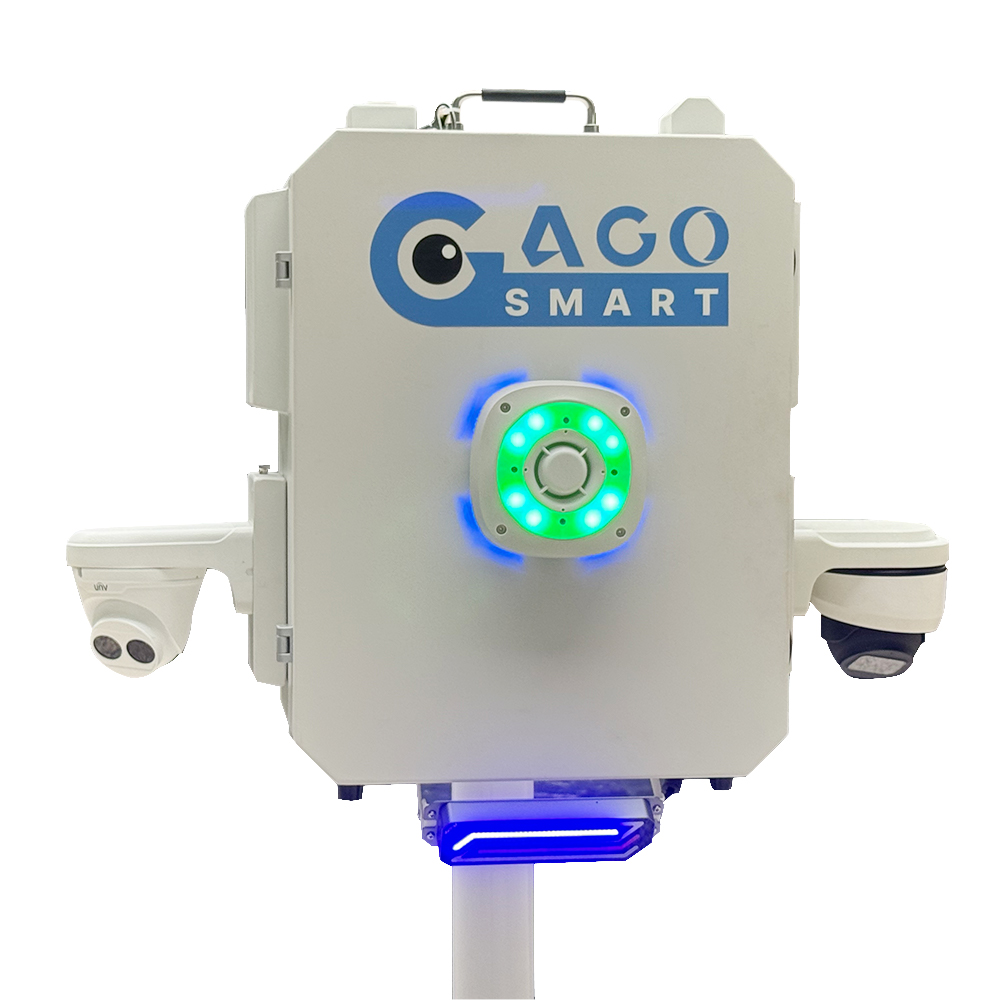

Note※ : Sound AI PoE Light Siren is Optional Choice, Partners can Buy Alone from Gago.

Charge/Dis-Charge Function	Solar Panel Input Power	240W(When higher than that, system will limit and keep working)
	Input Power	60V
	Charge Current	20A
	Discharge Power	10A 240W
	Charge Power Fit	36V Solar Panel Work with 24V Battery
	Day Power Generation（Sunday）	PV 240W 1450wh
	Day Power Generation（Rainy）	PV 240W 150wh
Charge Control	MPPT	Stage 1 - Battery in Deep Discharge State: Trickle charging (constant small current with gradual increase); Stage 2 - Main Phase: MPPT maximum efficiency charging within the rated charging current; Stage 3 - Constant Voltage Charging: Charging stops once the capacity reaches a predetermined value.
POE Switch	PoE	8 Ports 1000M 802.3BT
	PoE Power	8 Ports 802.3 BT POE 90W
	POE Transmission Distance	150M Max
	POE Protection	High Frequency Closed Protection Surge Protection Overload Protection Over Current Protection Over Voltage Protection
	POE Start	Each Port Powered One by One with 50ms Interval
Extra DC Output	DC12V	72W Max, 2P 7.62
Extra DC Output	DC24V	144W Max, 2P 7.62
Power Storage Ports	Solar Input	MC4 35A
Power Storage Ports	Battery Input	XT60E-M
Data Port	RS485 Port	2P 2.54 Modbus RTU

OLED Display	Material	Industrial 0.96” OLED
	Monitoring	Charge Voltage/Charge Current/Charge Power/Battery Voltage/Power %/ Load Power
	Power Generation Collection	Day Generation / Total Generation
	Alarm	Solar Over Voltage / System Over Temp / Load Closed Circuit / Load Over Current/NTC Sensor Issue
Battery Type	Ternary Lithium	24V/117Ah(Heater can be customized)
Physical Connection Safety	Load Output Protection	DC Output Closed Protection/Reverse Connection Protection/PoE Closed Protection
Physical Connection Safety	Solar Panel Protection	Reverse Connection Protection
AC Power Charger	Power	AC110-270V, UL Listed
Power Channel Switch	Yes	Switch Button for AC and Solar
Deterrence Light	Optional	Sound AI PoE Light Siren
General
Enclosure	Material	Aluminum
	Weight	39KG(Including Battery and Package Box) Battery Weight: 15.4KG Package Box: 3.5KG Note: Battery can be sent alone if partners need
	Dimension	445Wx609Hx300D mm(Including Mount)

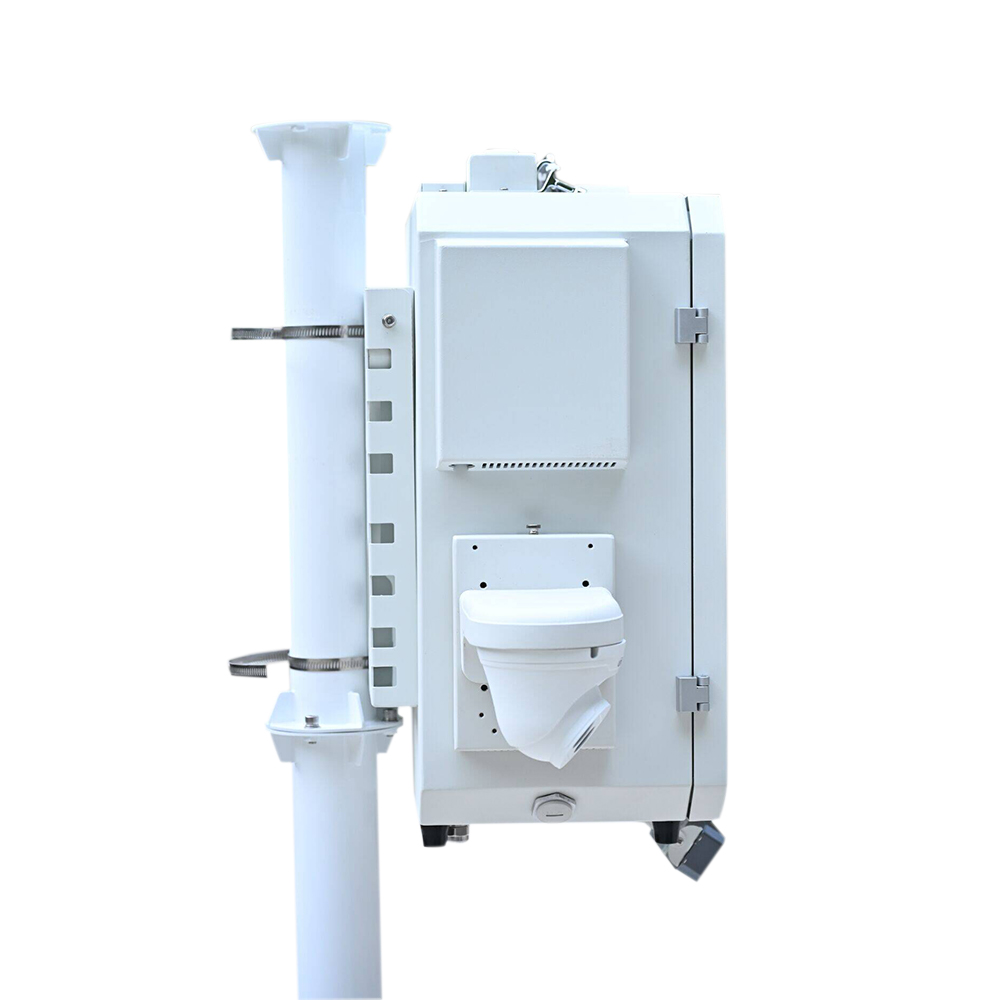

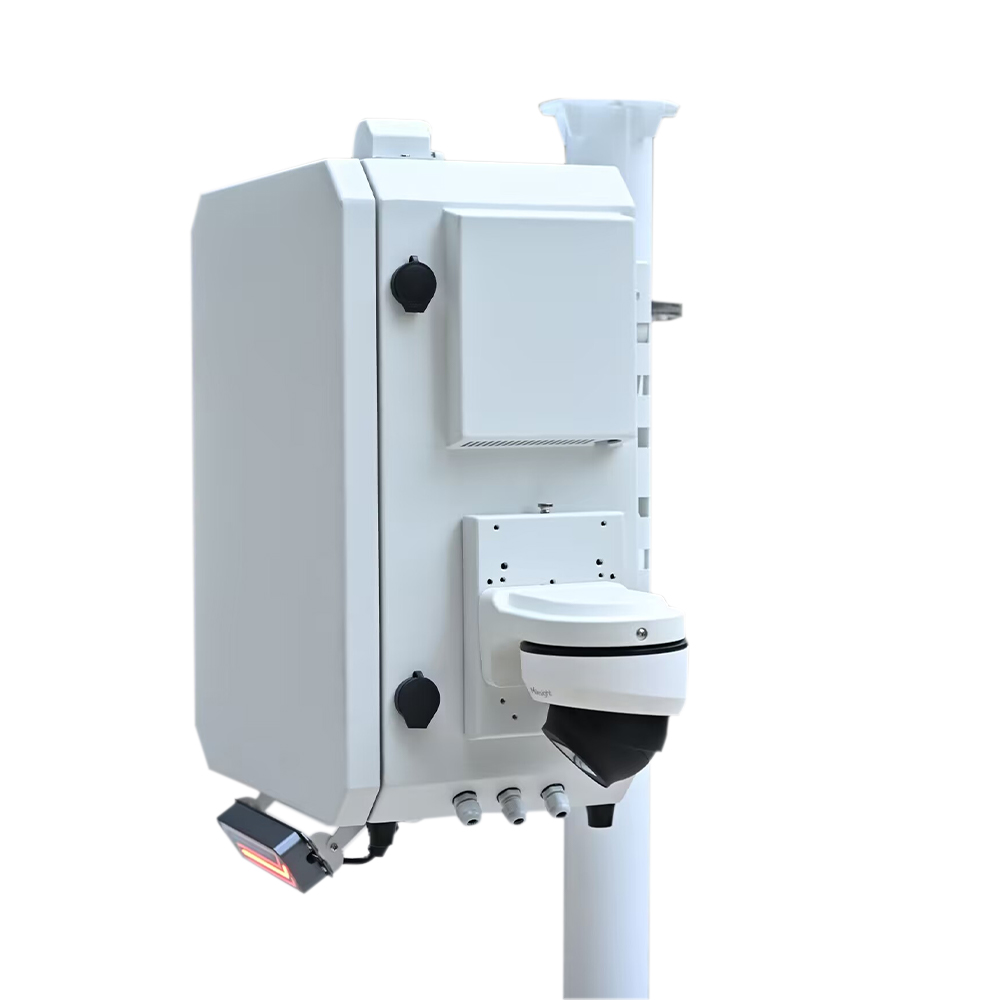

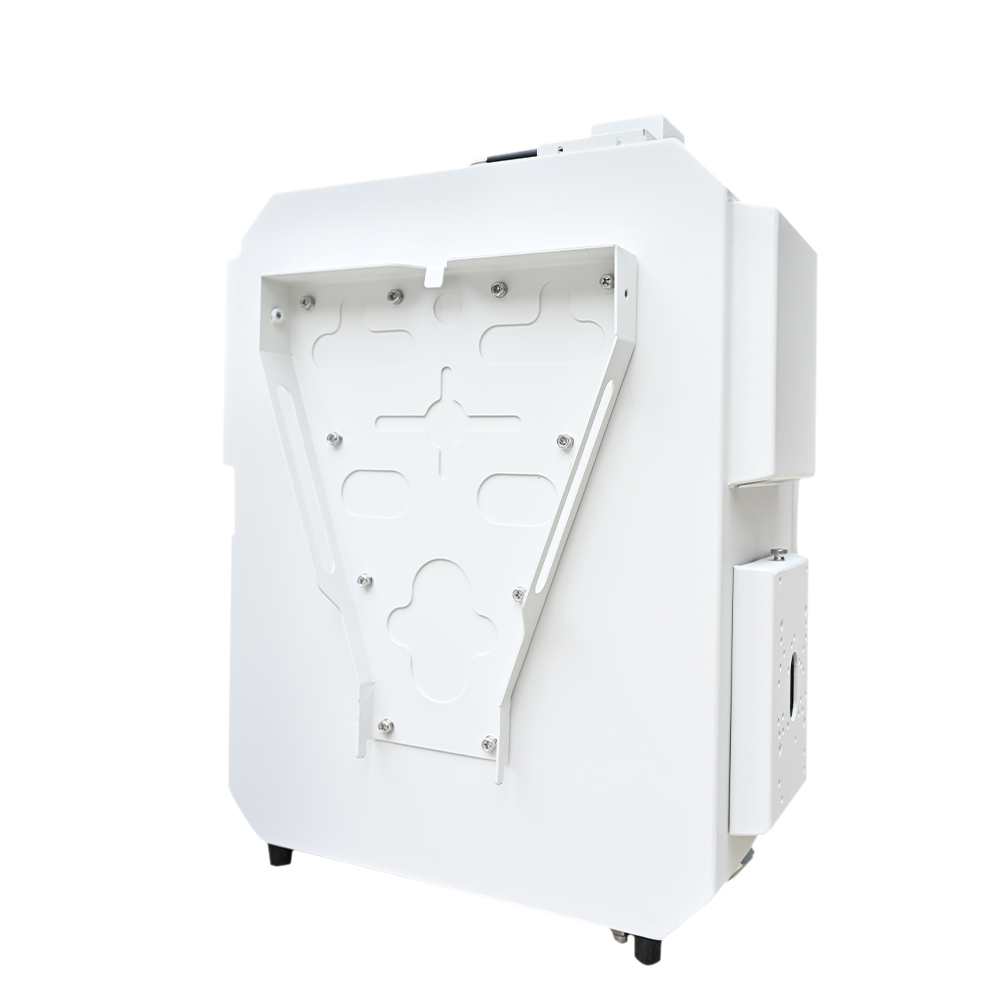

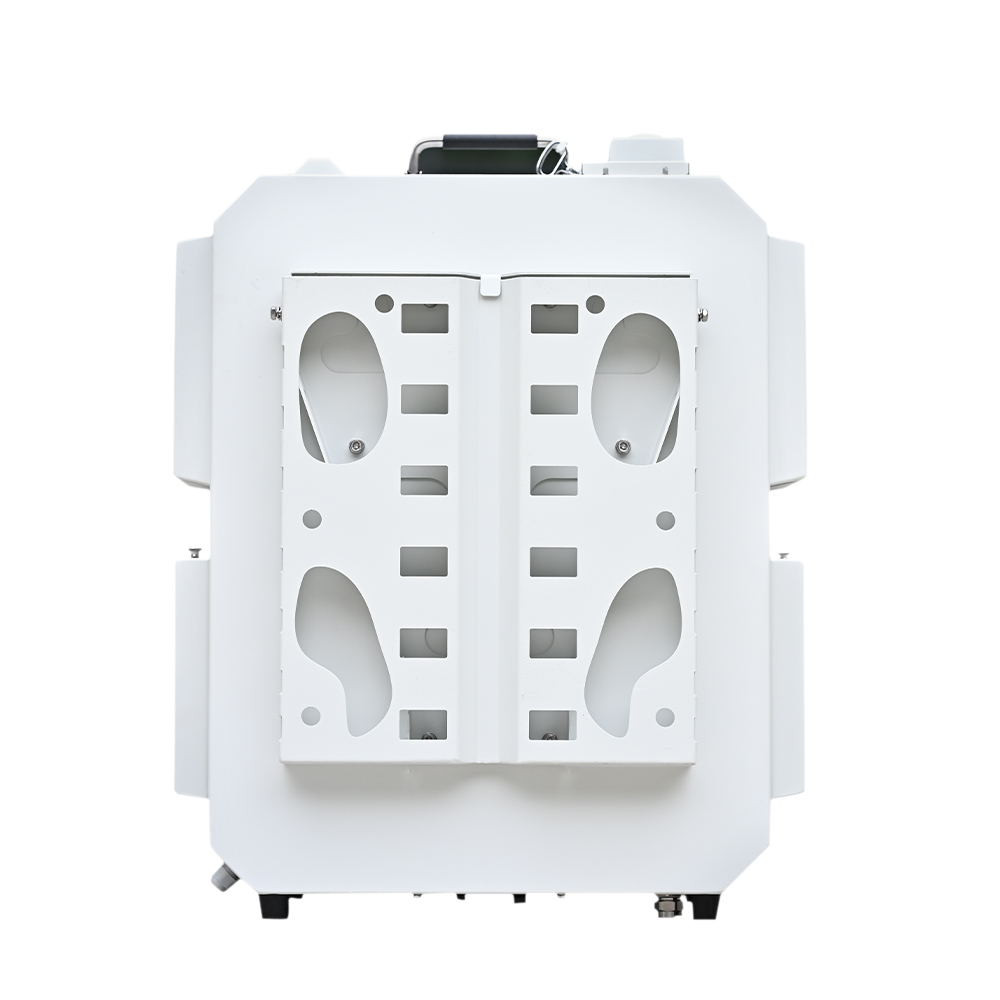

	Mounting	Pole(Fast Installation,9-25cm Diameter Pole is Perfect)
