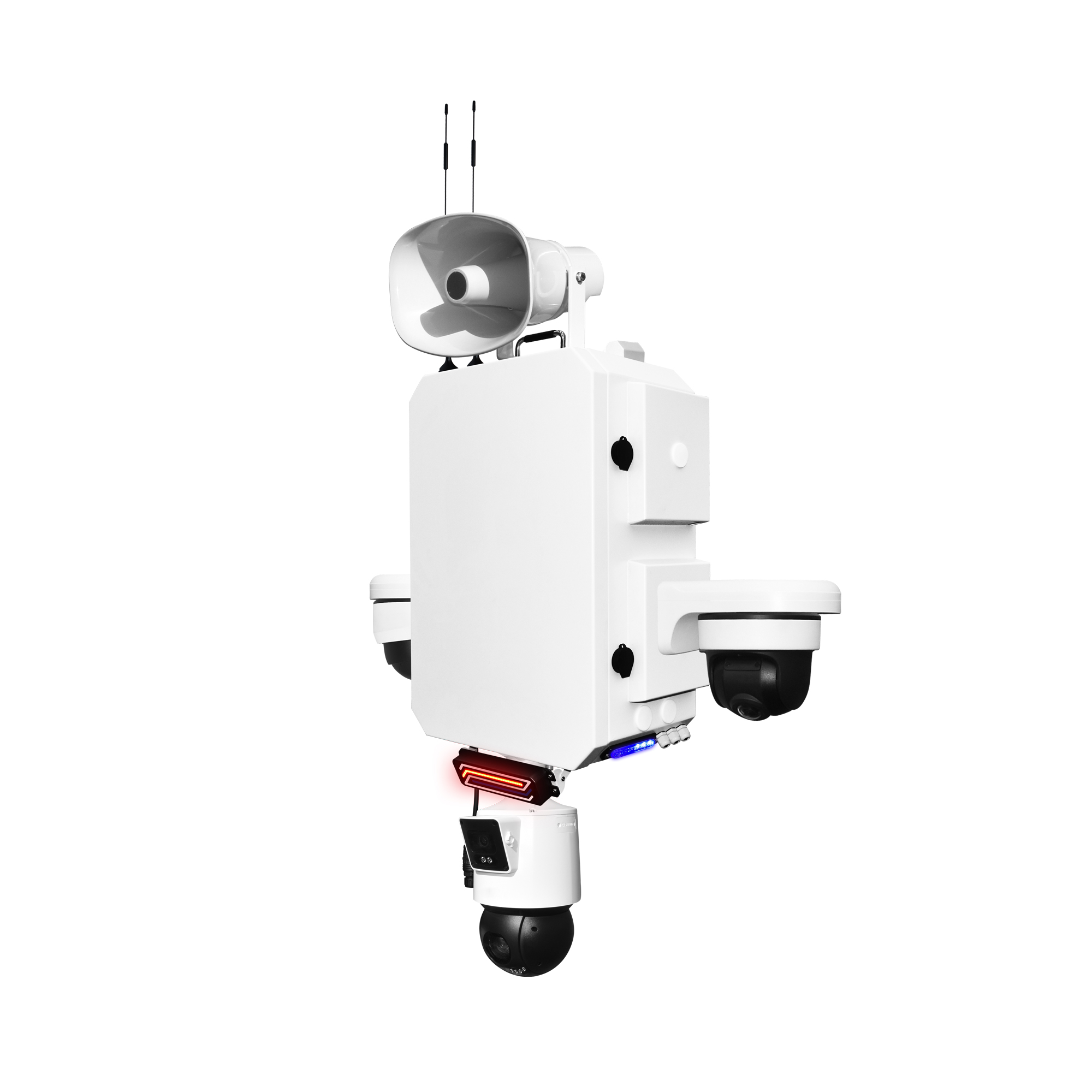

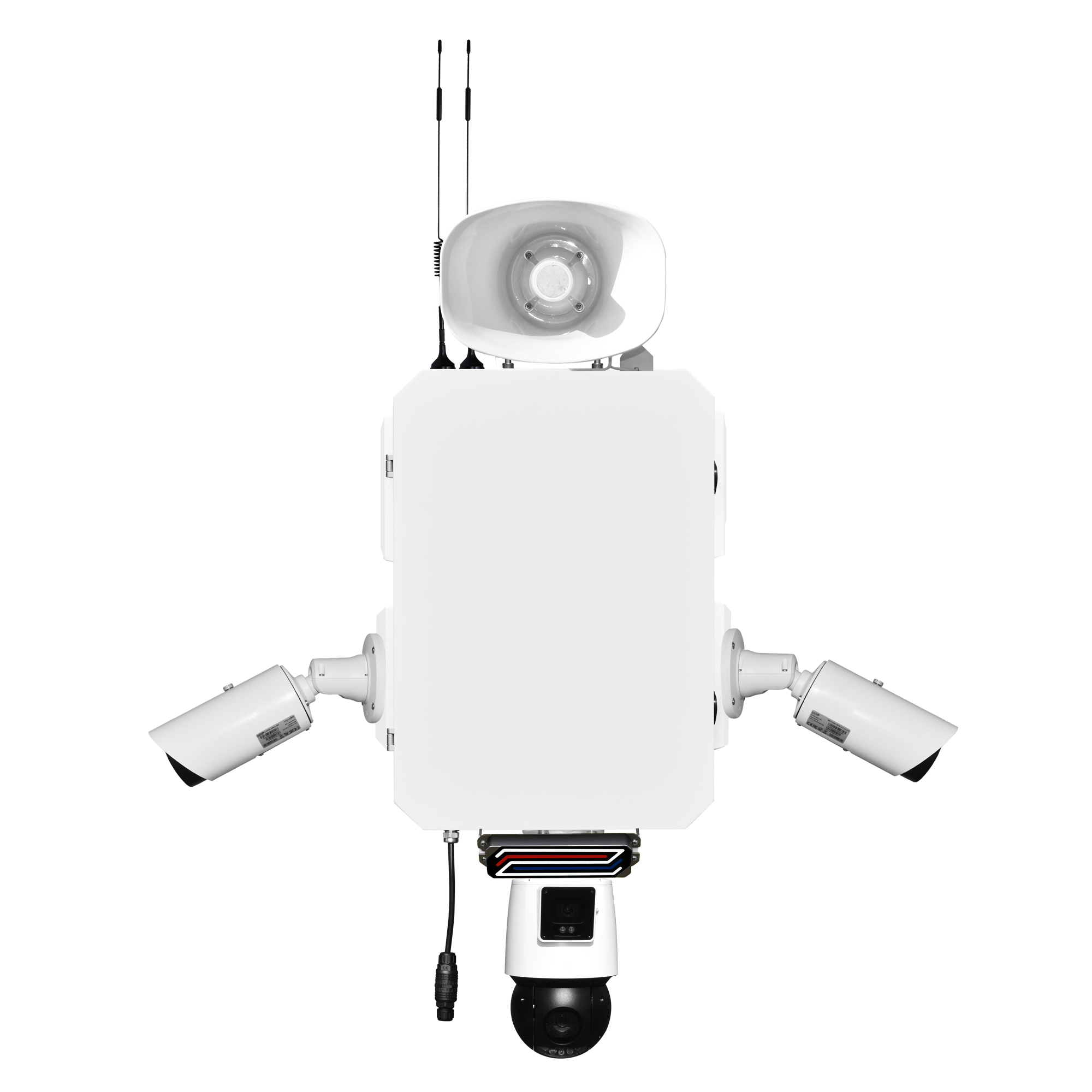

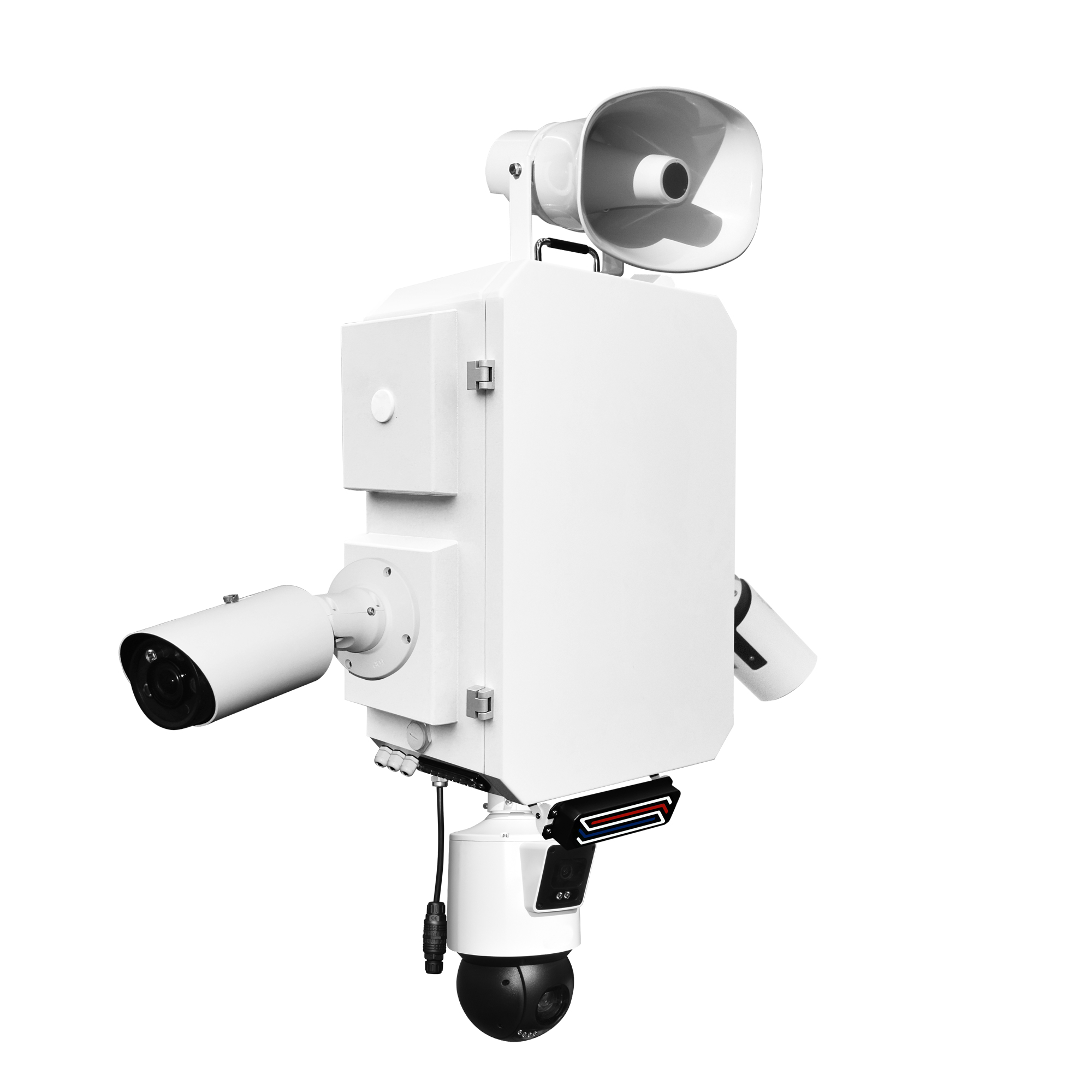

DL Box

Introduction

Specification

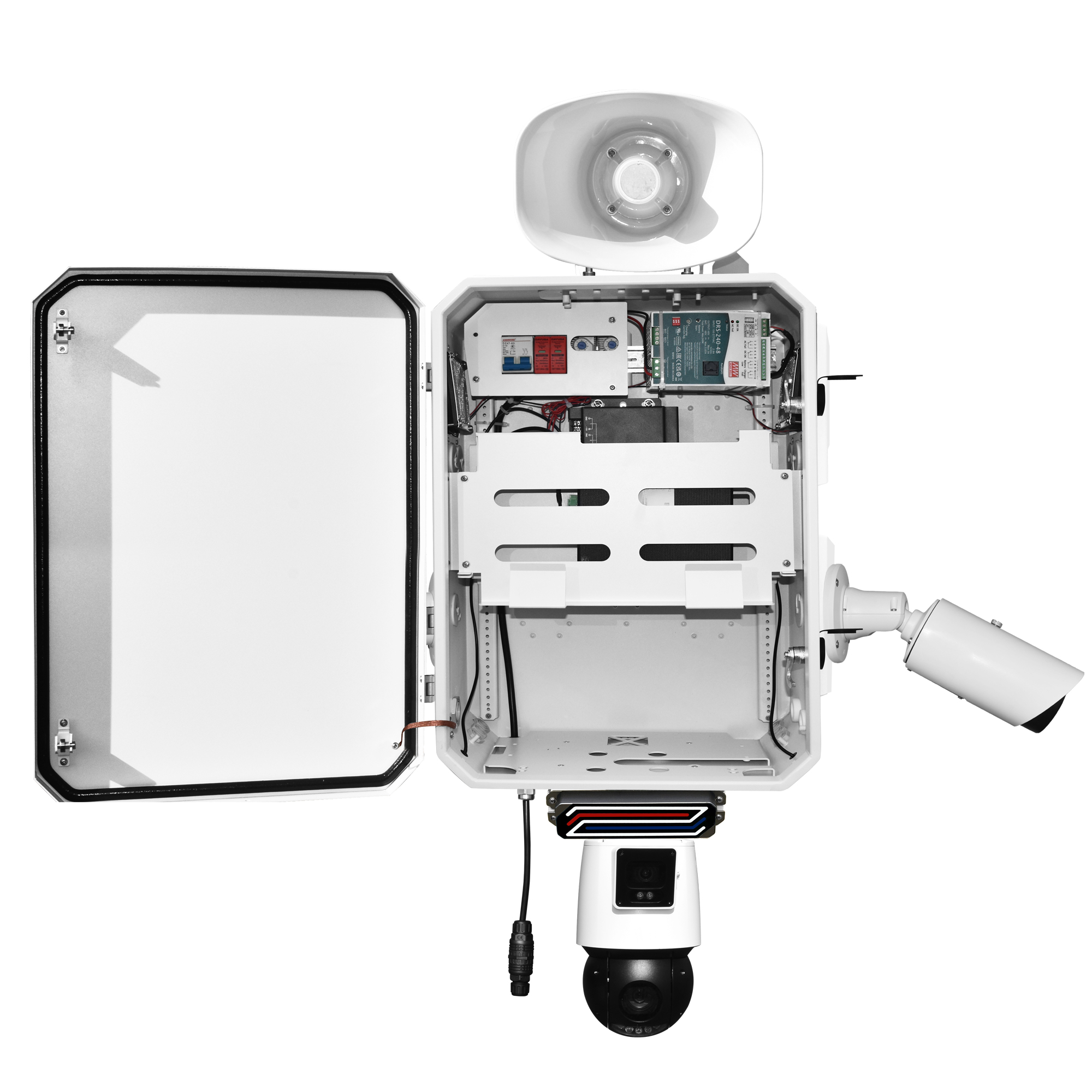

① 120W PCM and MeanWell UL DC24V/5A Din Rail Power Supply;

② Air Breaker/Surge Protector/USA Din Rail Power Plug/2 Temp Controllers;

③ 70CM AC Wire with IP68 Water-Proof Stainless Connector,and AC Wire Water-Proof UL Male&Female Connector;

④ NPT 3/4" Knockout with Cap;

⑤ With Antenna Fix Board;

⑥ With Horn Speaker Installation and Cable-In Design;

⑦ With UL DC12V 2PCs Fans and Stainless Hand-Carrier;

⑧ With Pole&Wall Mount;

⑨ With PTZ Mount ;

⑩ With 2PCs Red&Blue Deterrence Lights, and Sound AI PoE Light Siren Optional.

Sound AI PoE Light Siren(Optional)
Network Part
Protocols	MQTT, Onvif, TCP/IP, UDP, IPV4/V6, HTTP, HTTPS, DHCP, DNS, ICMP,SMTP,
Ethernet	RJ-45 (10/100 Base-T)
Device Interface
POE	PoE In
Alarm	Alarm In and Alarm Out
Speaker(Audio)	Yes,4Ω3W
MIC	Yes(Upto 8 Meters Detection Distance)
Deterrence Light	White/Blue/Red(Light Intensity Adjustable by Web ) White: 12W Max Blue:3W Max Red:1.5W Max
Sound AI
Keyword Detection(HELP ME, HELP 911, EMERGENCY), Noise, Scream Detection, Glass Break and Gunshot
General Information
Power Supply	PoE/DC12V, 25W Max
Dimension	205mm x 50mm x 27mm(Thickness)
Weight	420g
Mounting	Wall and Ceiling
Water-Proof	IP67 Rated
Housing Material	Full Aluminum(CNC)
Working Temp.	-20 to 50 degree
120W Power Control Module
Power Inputs	DC24V/5A and DC12V/10A Dual Inputs
Power Outputs	DC48V/1A, DC24V/1A, DC12V/3A 9CH, and 7/8/9 DC12V Channels Controlled by Alarm Inputs 1/2/3 Channels.
Alarm In&Out	Input 3CH, Output 3CH
Enclosure Information
Materials	Aluminum+Steel(Powder Coated)
Weight	14KG
Dimension	39Wx57Hx24.2D CM(5CM Depth Mount Not Included)
