Introduction

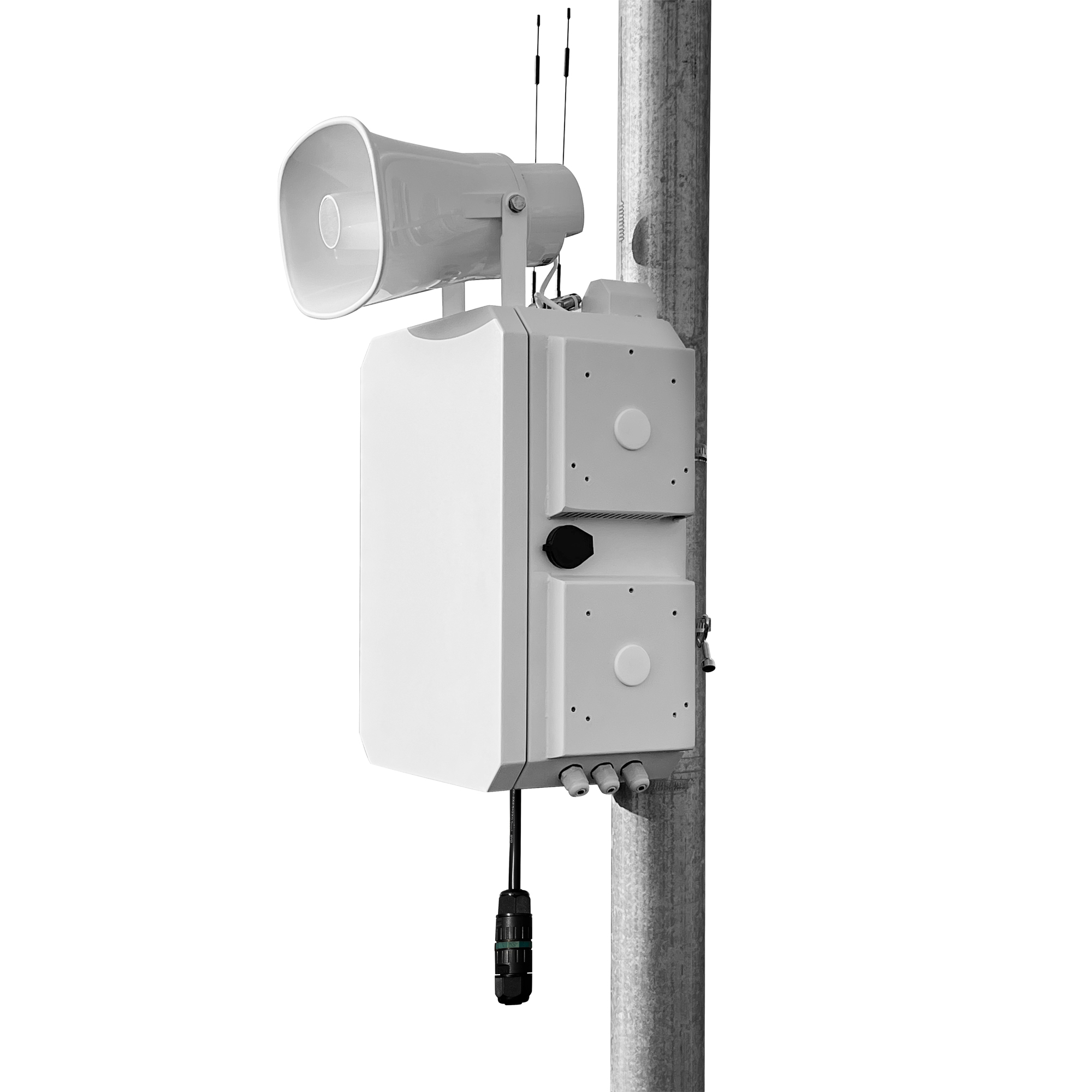

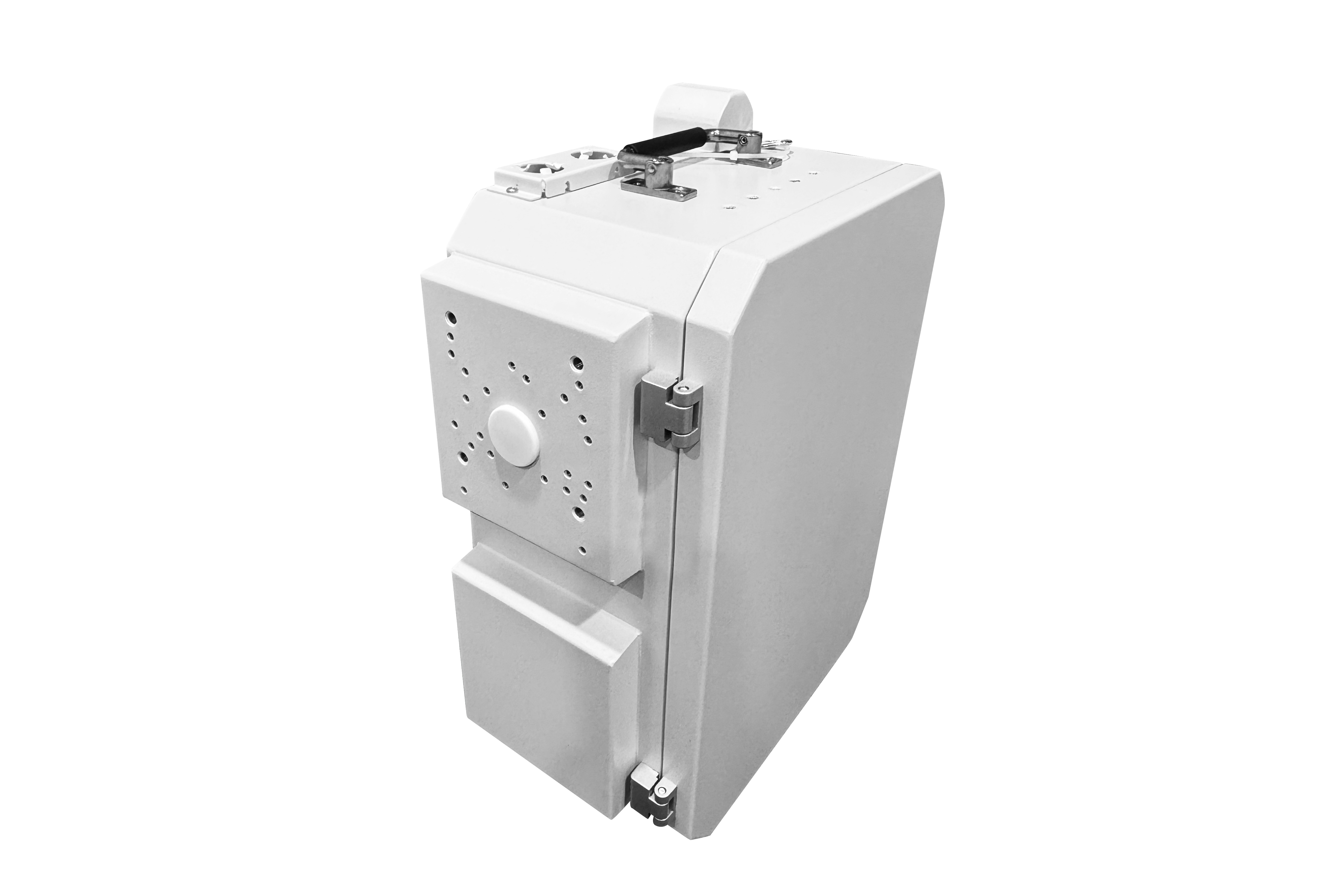

EL BOX is a compact and entry-level products model.

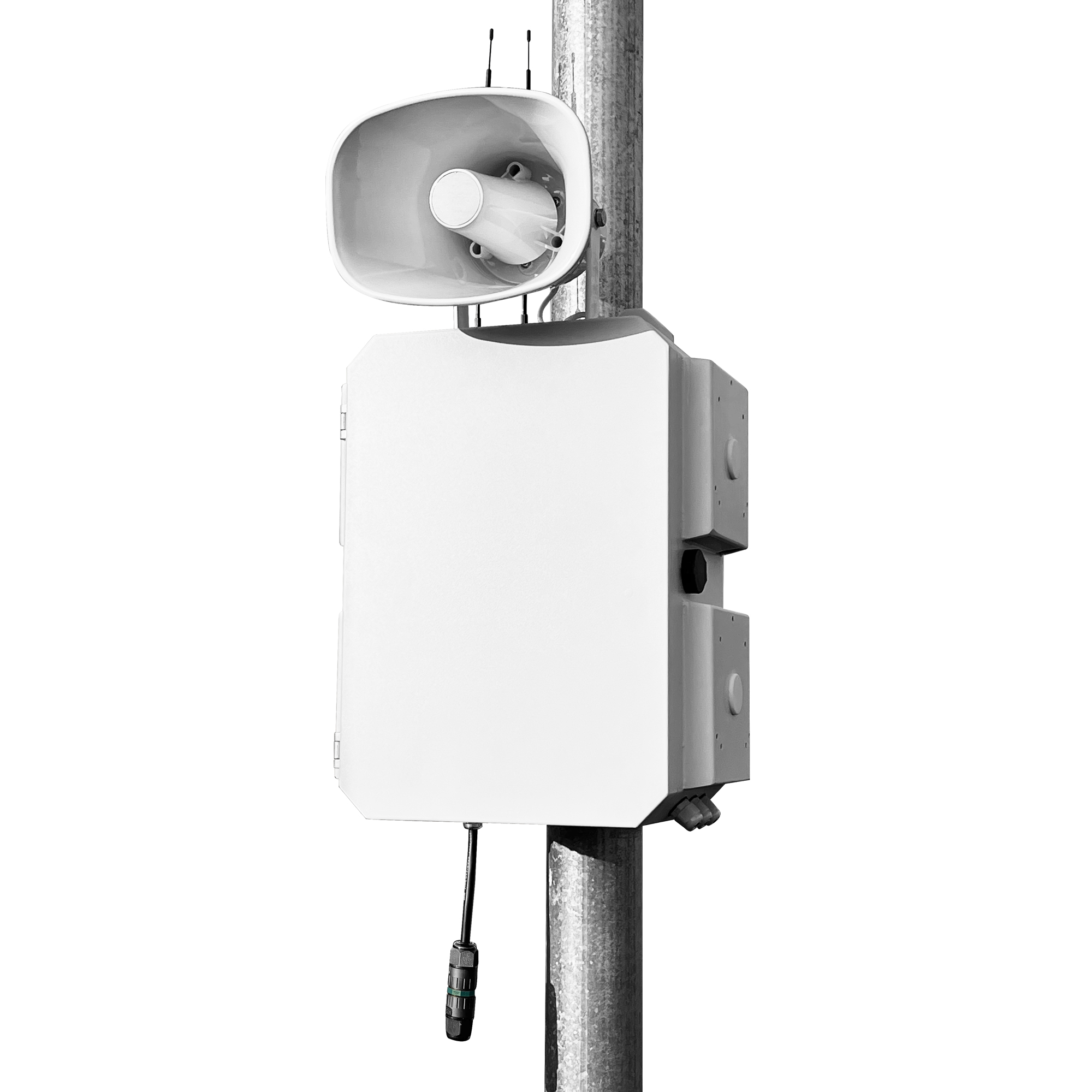

A small, outdoor, mains-powered enclosure for security and surveillance equipment.
It is only weights 8kgs. Box Dimension: 40 H x 29 W x 17.9D CM
Power source is mians power. Made by aluminum
All-in-One Design —

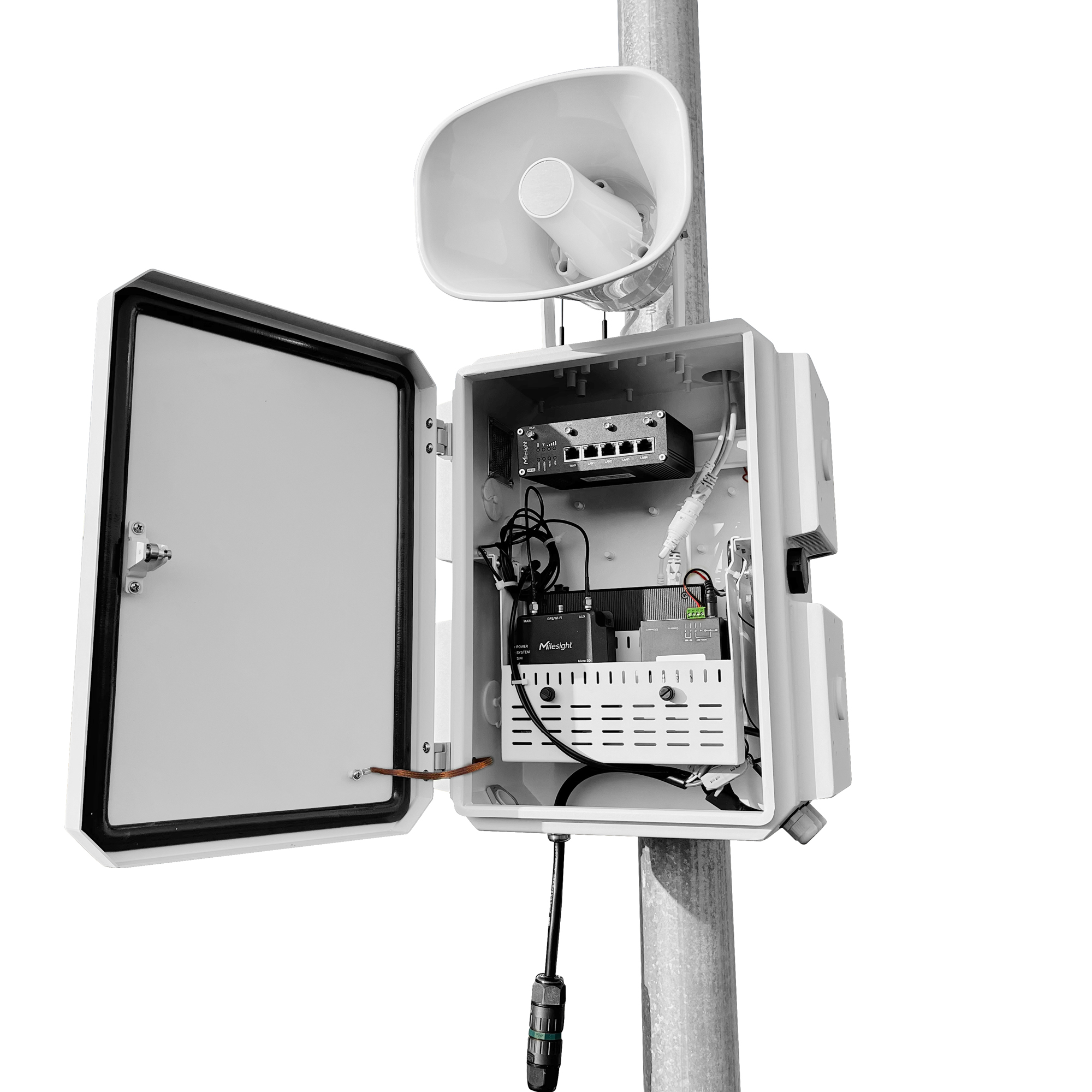

Builtin power supply module, surge protection, temperature control, connectivity, and mounting hardware.
Ready for Deployment —
Pre-installed accessories for fast setup and minimal field work.
Durable & Weatherproof —
IP 68 waterproof connectors, stainless steel fittings

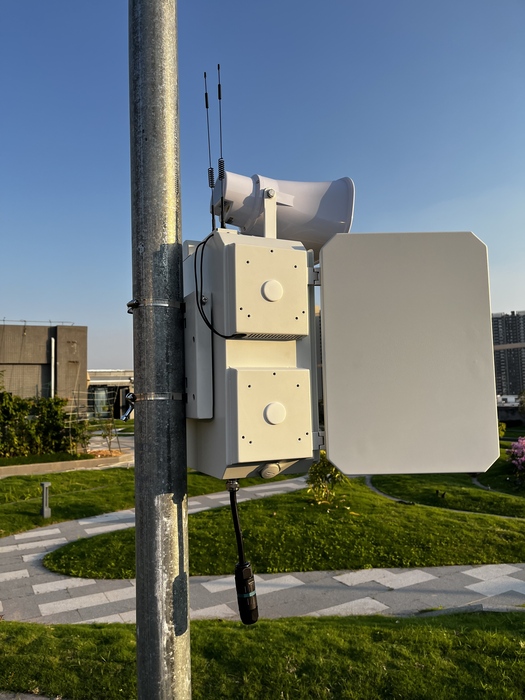

Versatile Mounting Options —

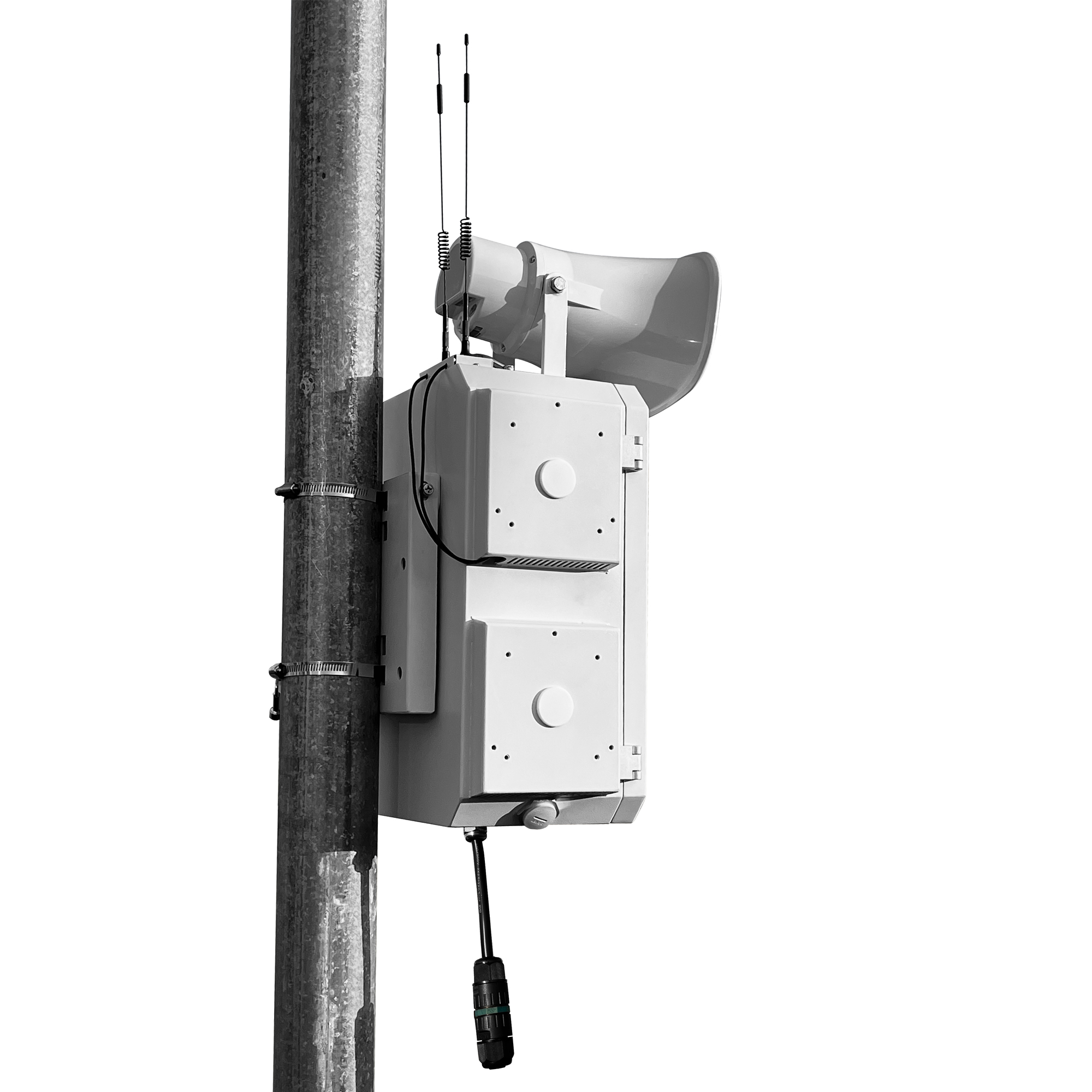

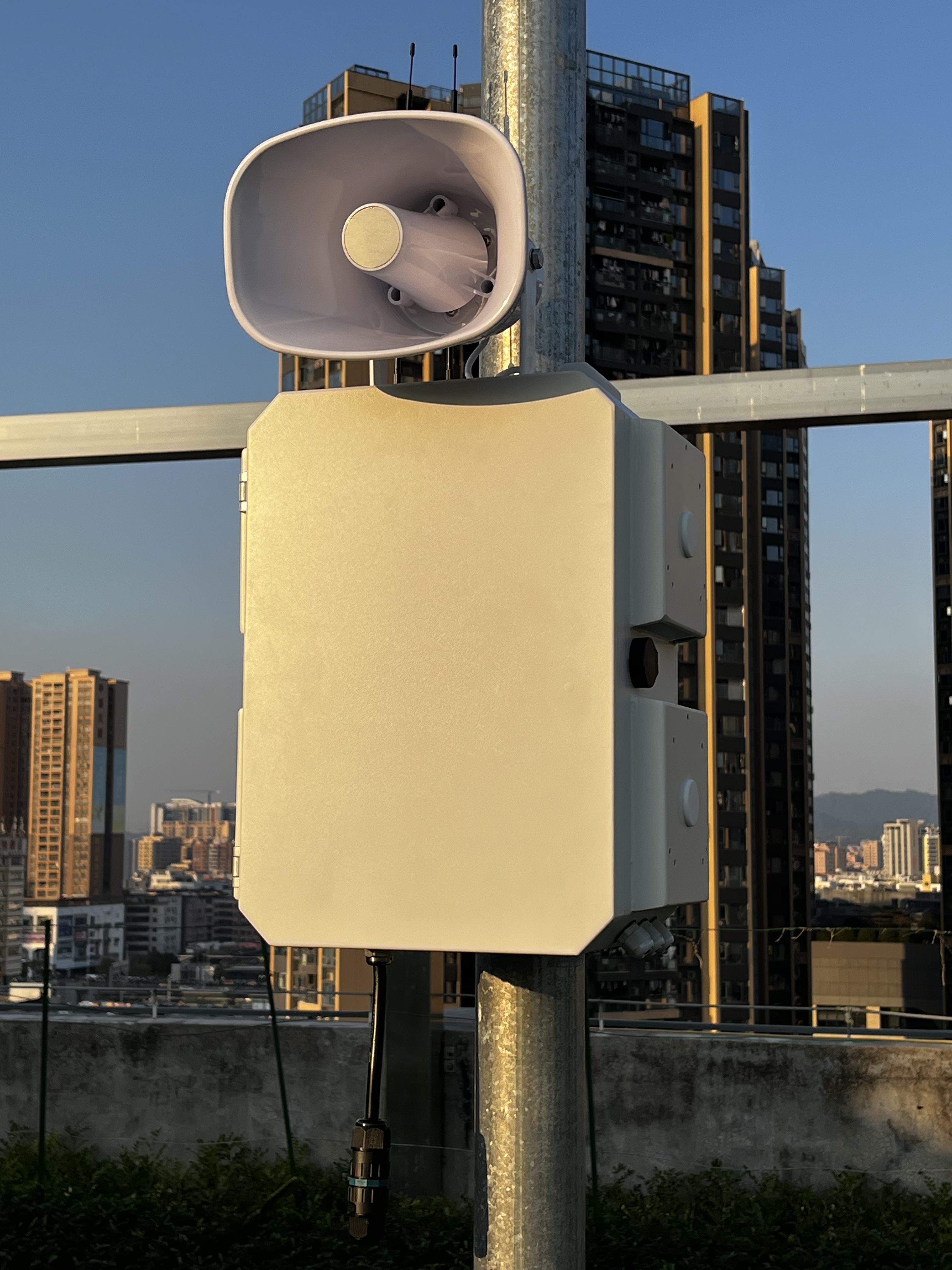

Pole or wall installation to suit different site layouts.
Enhanced Security Features —
Supports 4G antennas, horn speakers, AI PoE light sirens, and PTZ cameras for active deterrence.
AI function: Gun shot detection,Key words detection, noise and scream detection.
Siren function: When the camera detects an intruder, it can emit sound and strong light to deter the intruder.
Specification
All-in-One Design —
Builtin power supply module, sureg protection, temperature control, connectivity, and mounting hardware.
Ready for Deployment —
Pre-installed accessories for fast setup and minimal field work.
Durable & Weatherproof —
IP 68 waterproof connectors, stainless steel fittings
Versatile Mounting Options —
Pole or wall installation to suit different site layouts.
Enhanced Security Features —
Supports 4G antennas, horn speakers, AI PoE light sirens, and PTZ cameras for active deterrence.
AI function: Gun shot detection,Key words detection, noise and scream detection.
Siren function: When the camera detects an intruder, it can emit sound and strong light to deter the intruder.
Specification
1. MeanWell UL DC12V/1.25A Din Rail Power Supply(for Fan);
2. Air Breaker/Surge Protector/2PCs USA Din Rail Power Plugs/ Temp Controller;

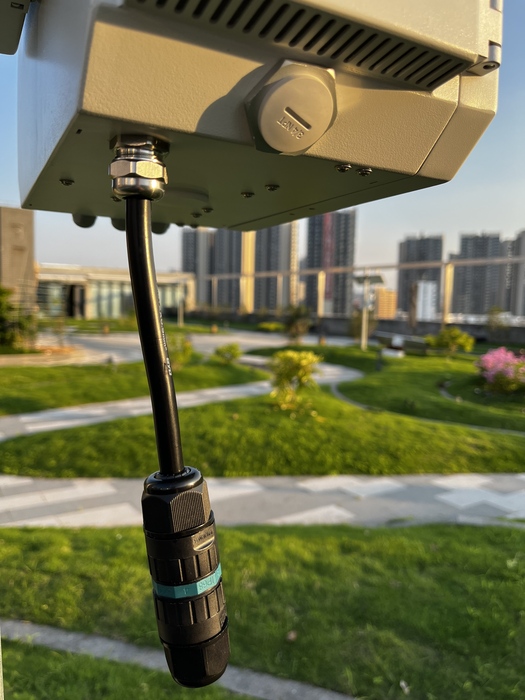

3. 70CM AC Wire with IP68 Water-Proof Stainless Connector,and AC Wire Water-Proof UL Male&Female Connector;
4. NPT 3/4" Knockout with Cap;

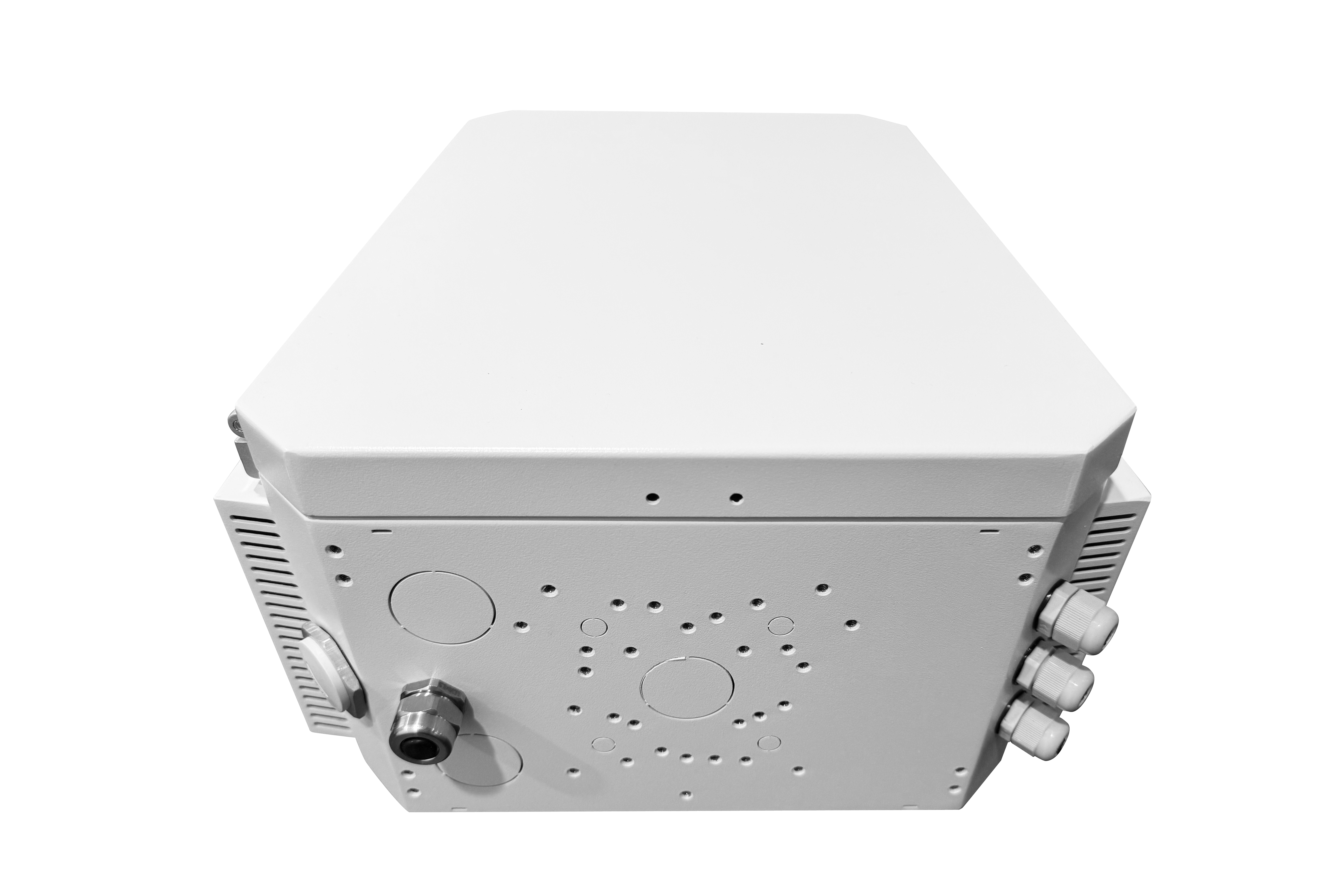

5. 3PCs PG16 Connectors;
6. With 4G Antennas Installation Design;
7. With Horn Speaker Installation and Cable-In Design;
8. With UL DC12V Fan;

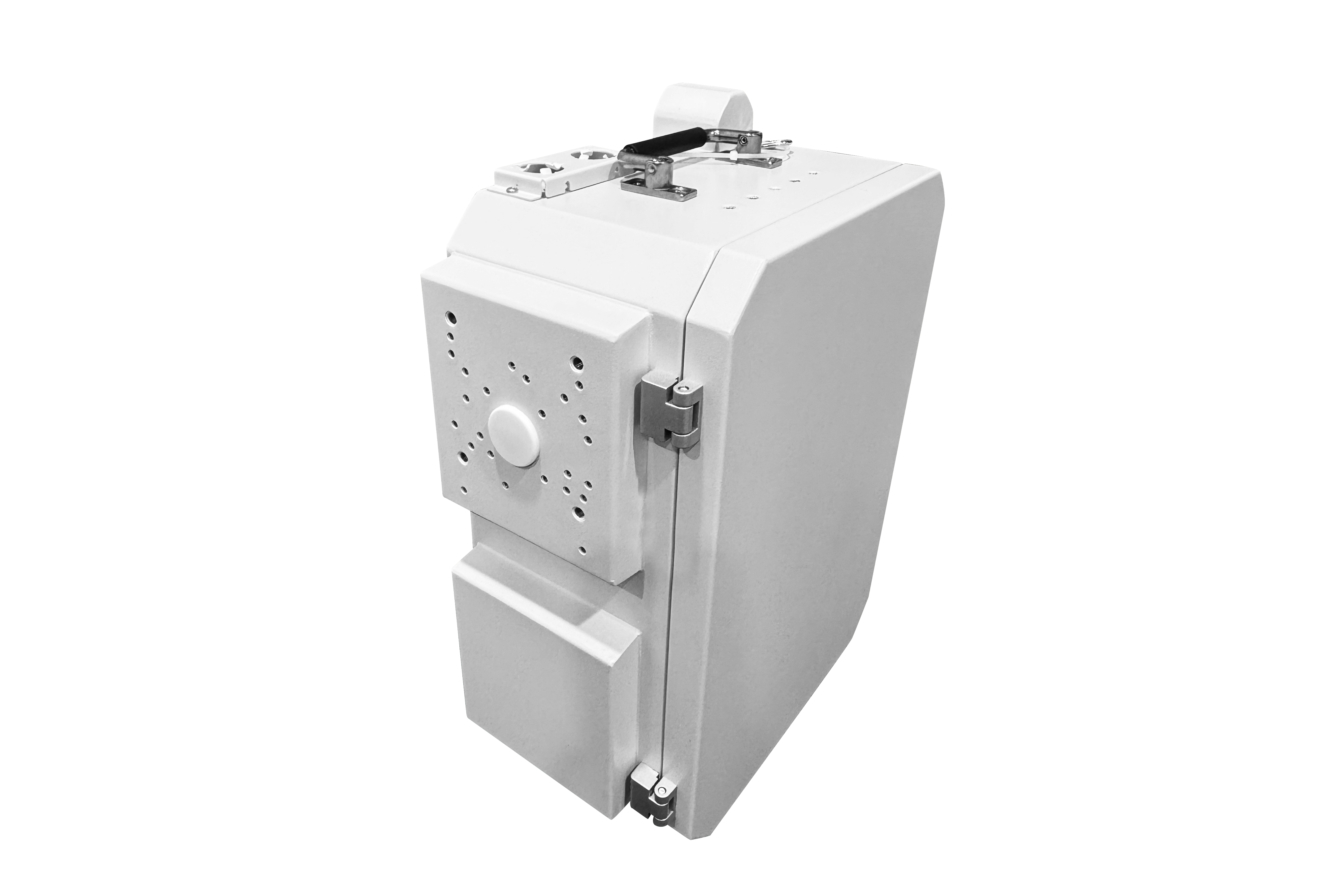

9. With Stainless Hand-Carrier;
10. With Pole&Wall Mount;
11. With Water-Proof Rubbers 4PCs and Water-Proof Cable-Through Rubbers 8PCs;

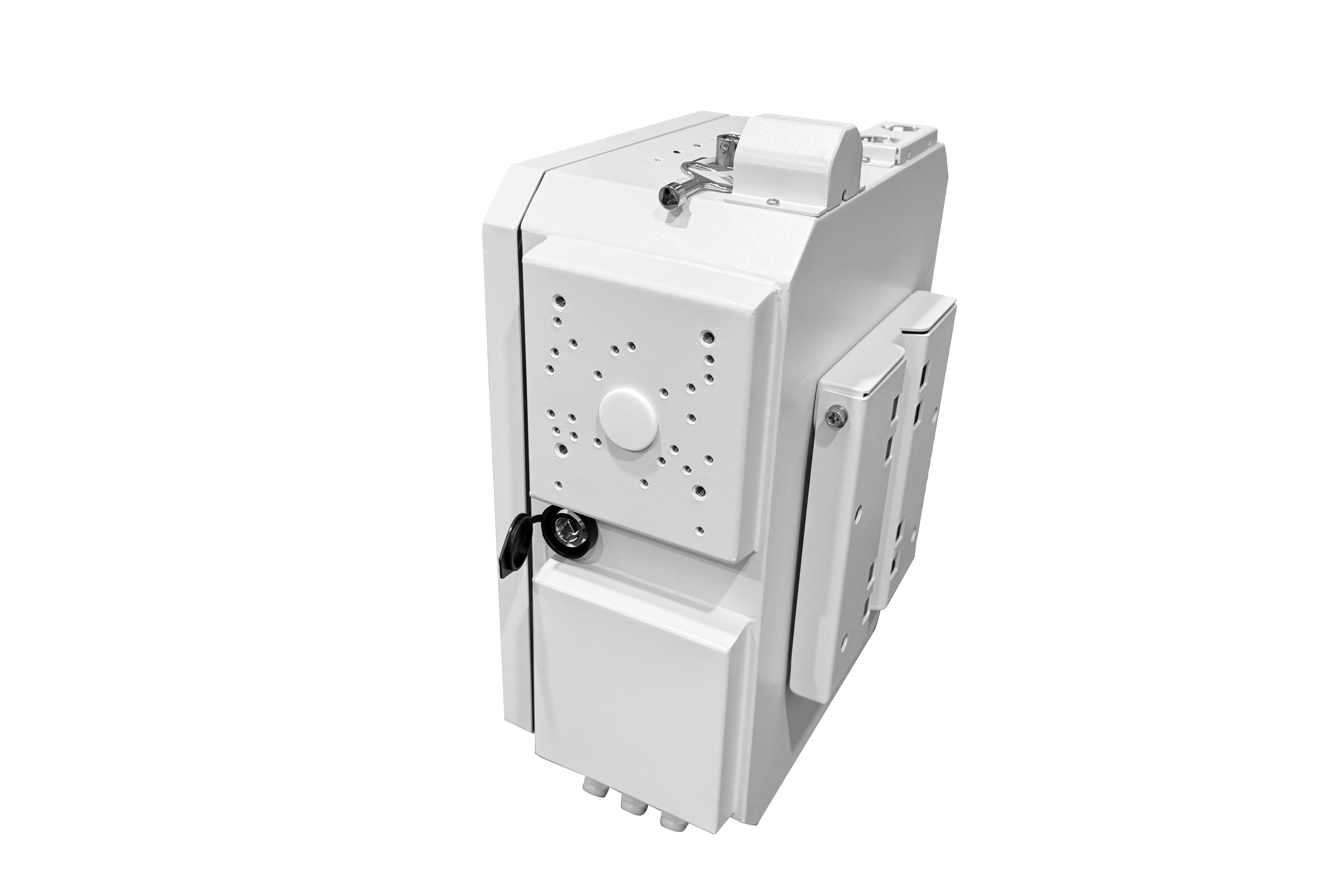

12. With PTZ Mount;

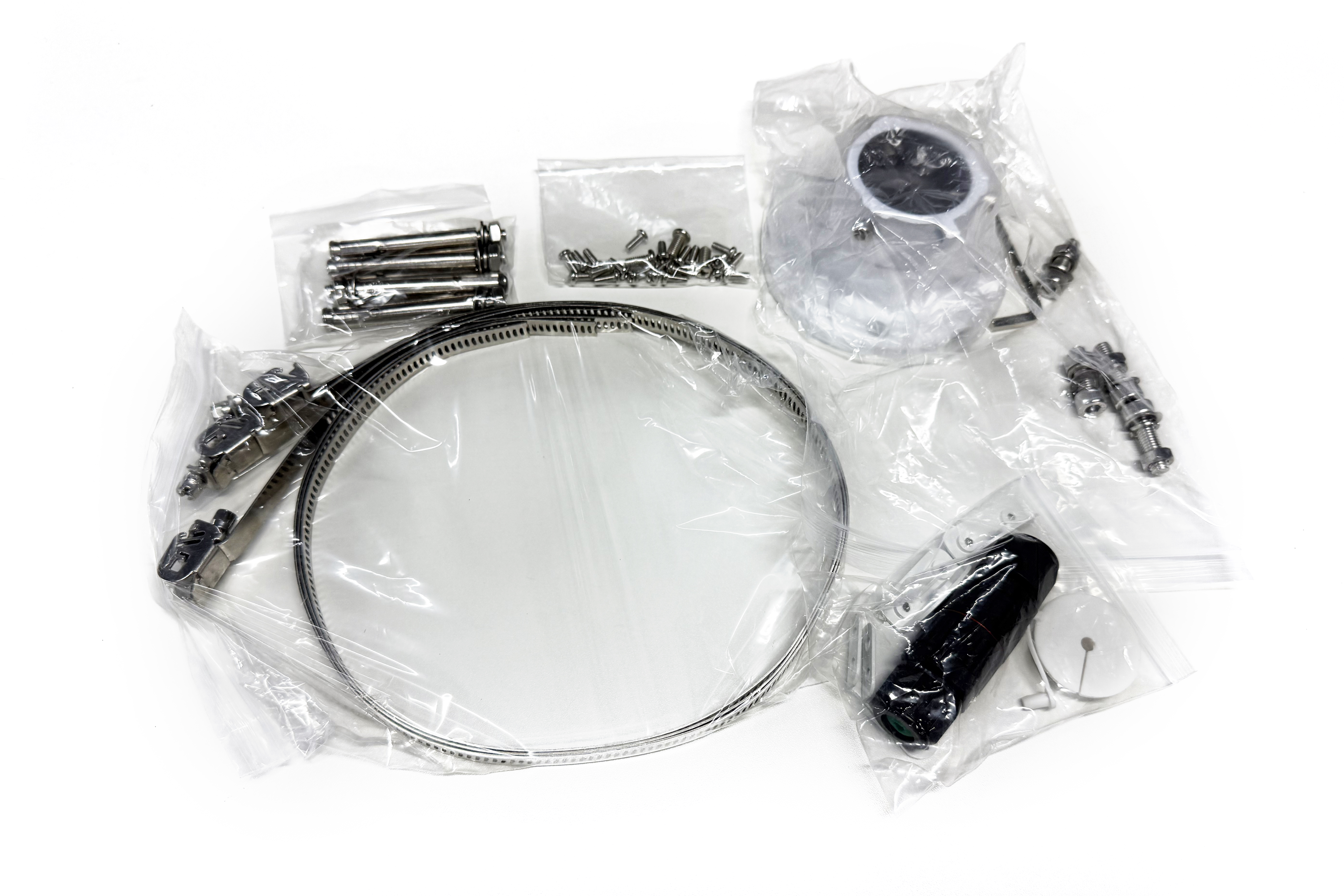

13. With Clamps 4PCs and Wall Screws;
14. With 2PCs NPT 3/4" Screws for Camera Junction Box Installation;
15. With 1PCs Locker;
Siren function: When the camera detects an intruder, it can emit sound and strong light to deter the intruder.
Application scenarios：
Construction sites — for temporary or long-term video surveillance and perimeter security
Remote facilities — such as substations, pumping stations, or telecom towers requiring autonomous monitoring
Event venues — outdoor concerts, festivals, and sports events needing quick security deployment
Parking lots & warehouses — enhancing security coverage with AI-based alerts and sirens
Critical infrastructure — protecting high-value assets and sensitive locations against intrusion or vandalism
Indoor Property
