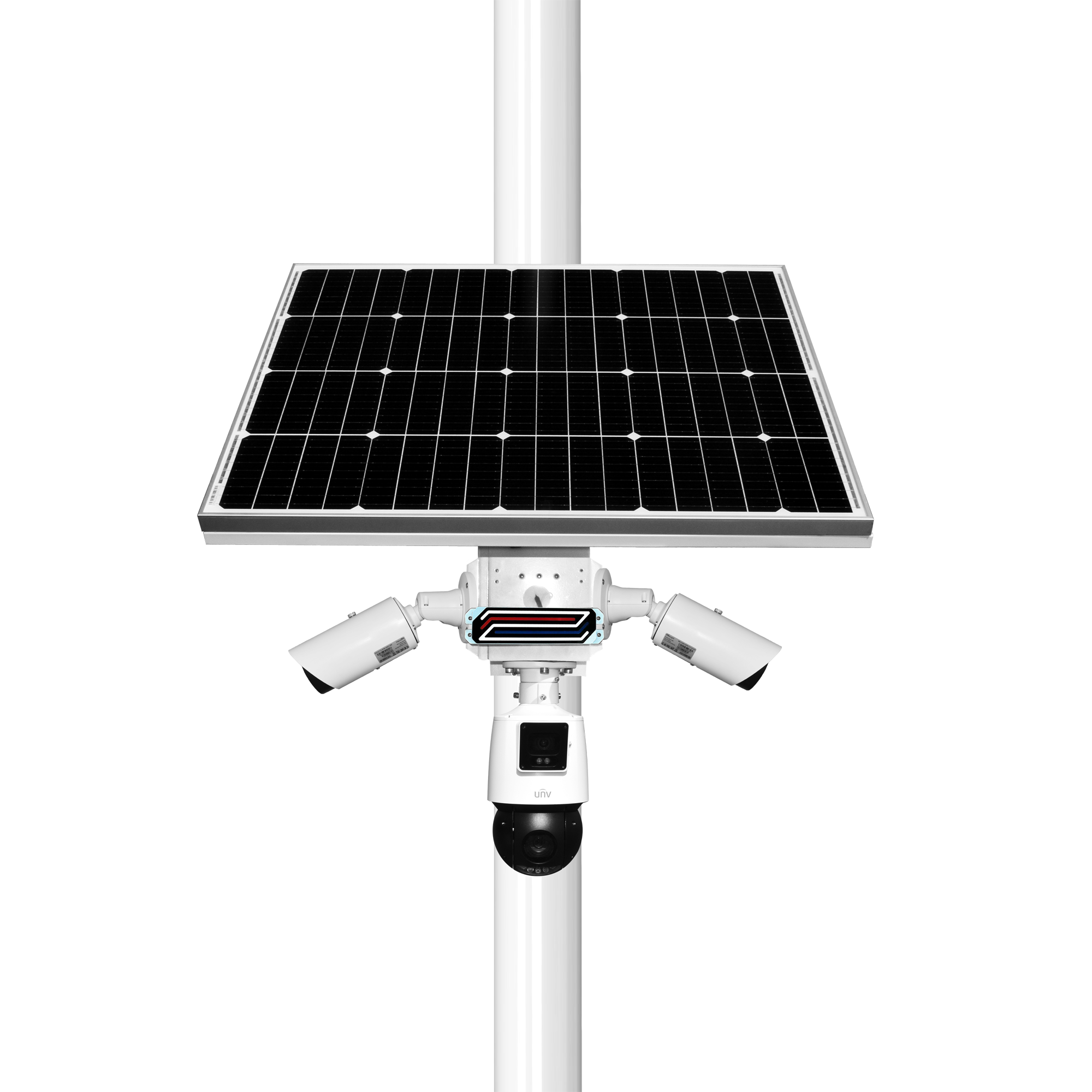

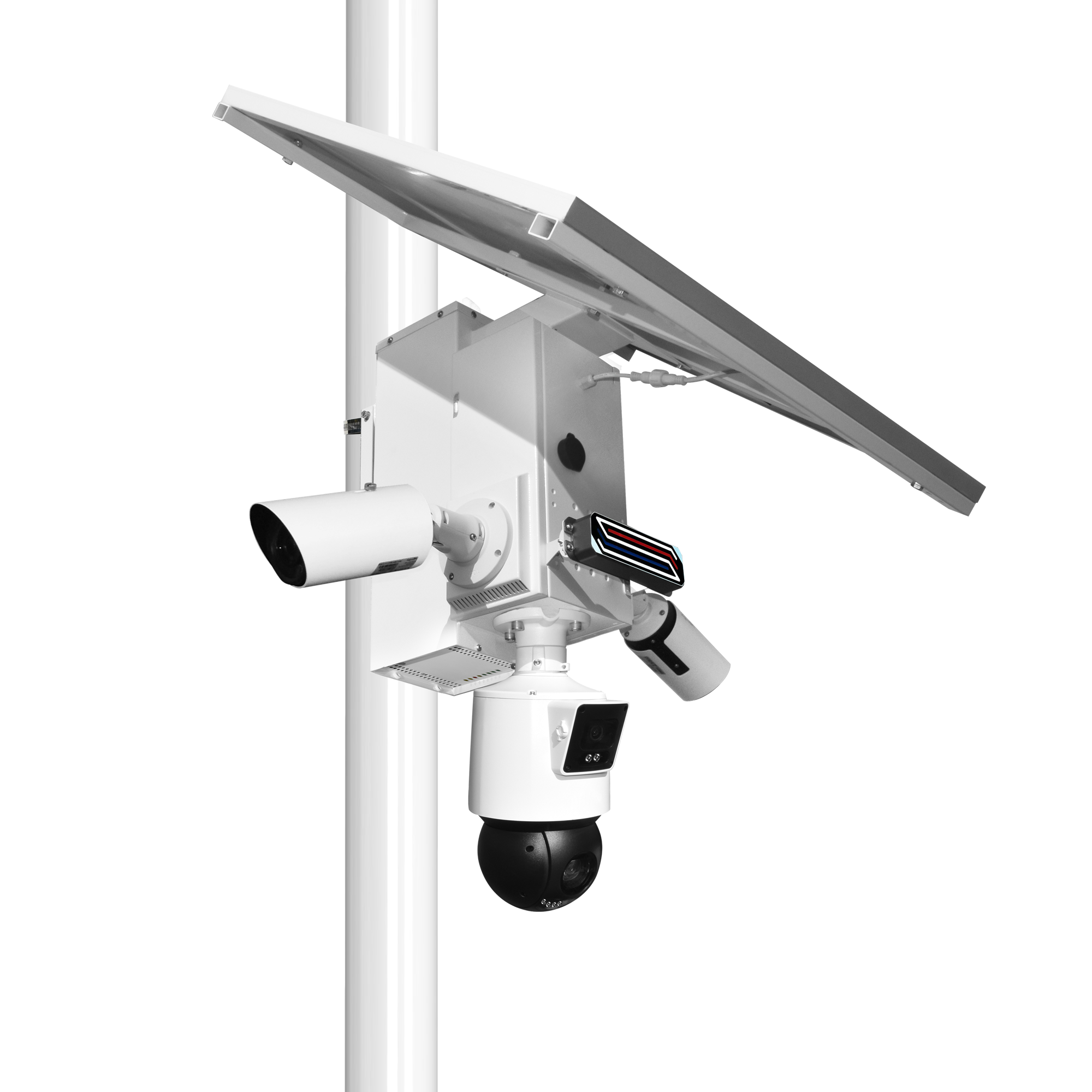

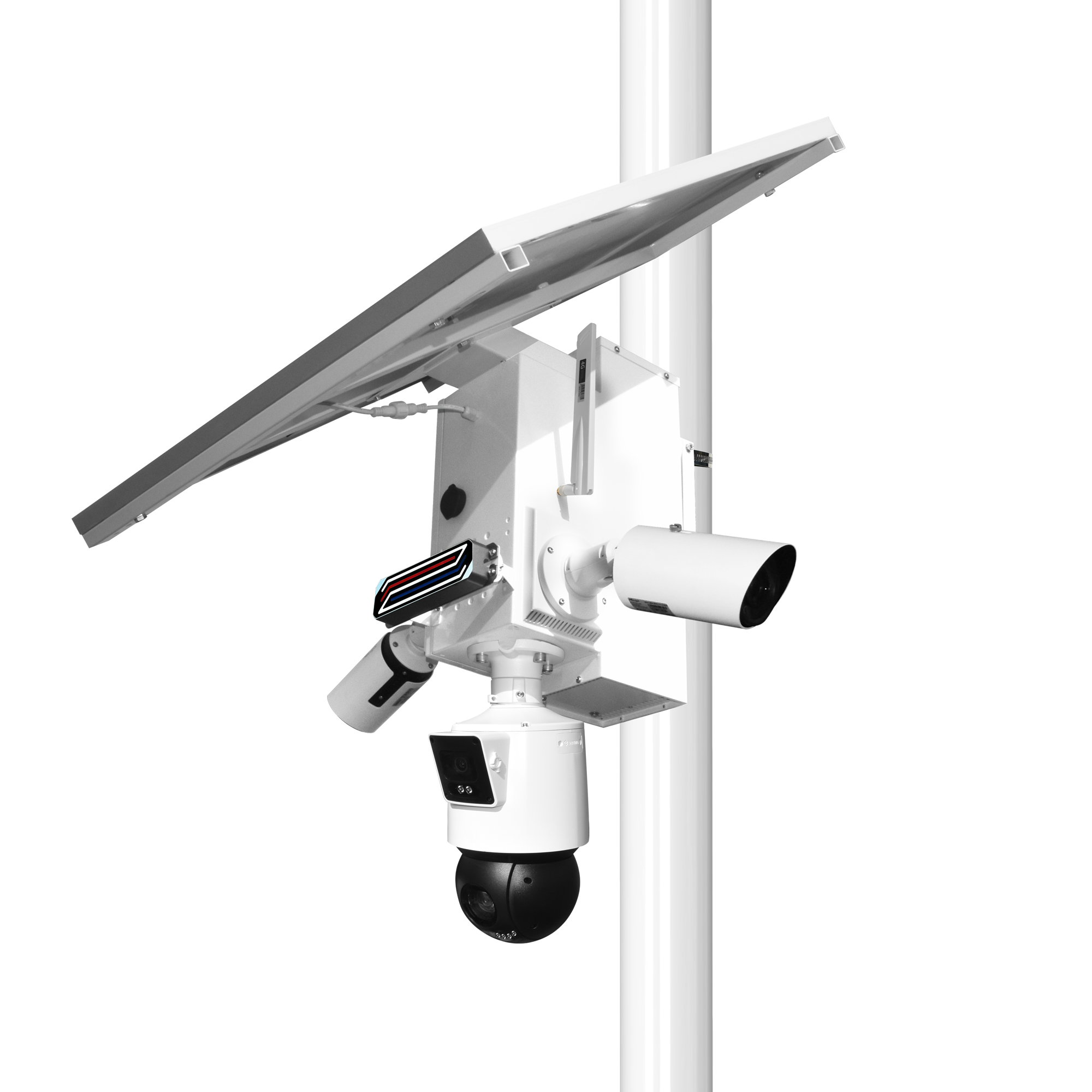

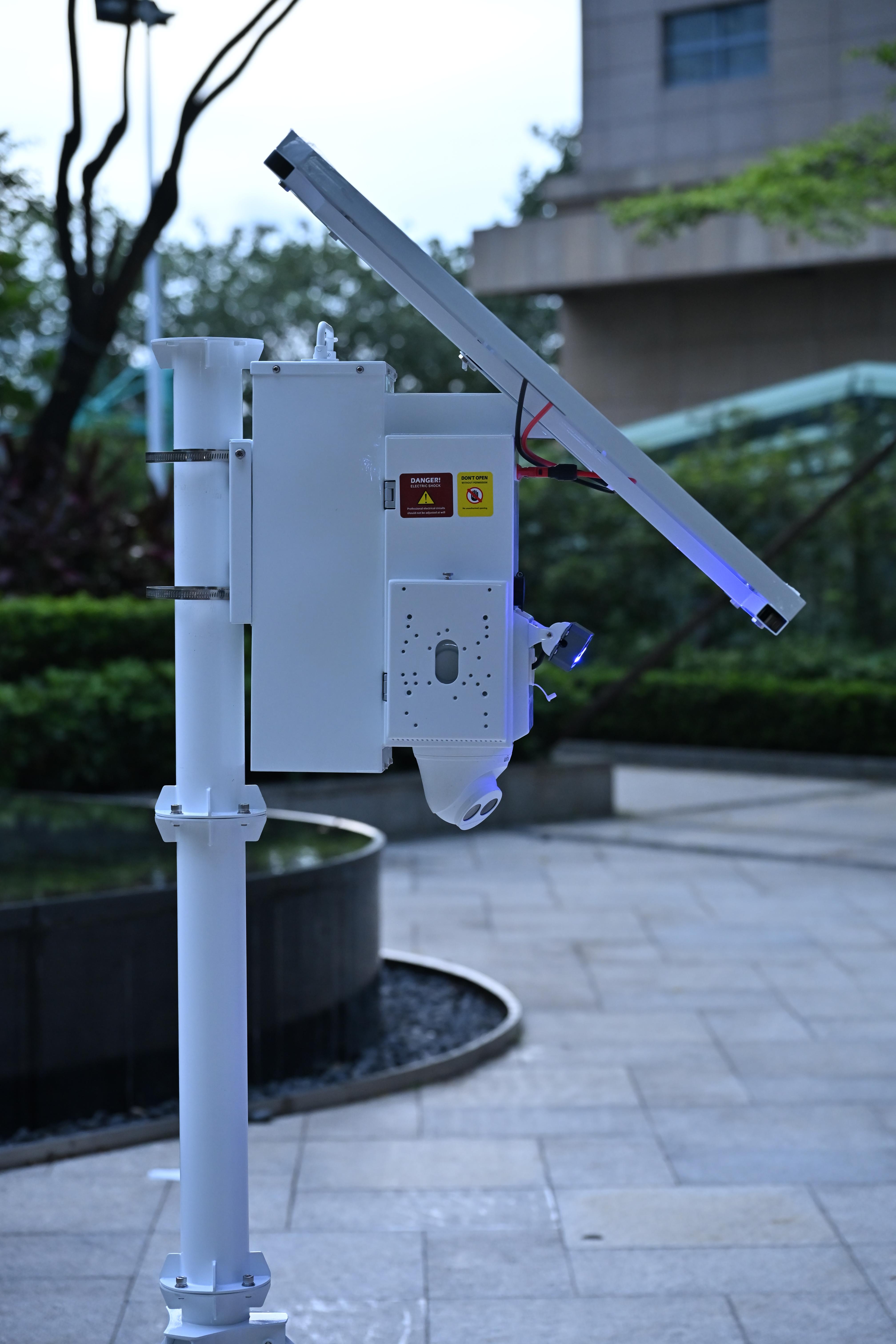

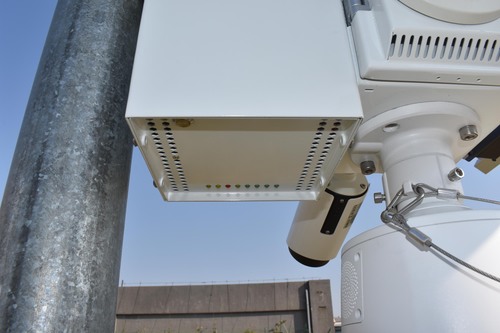

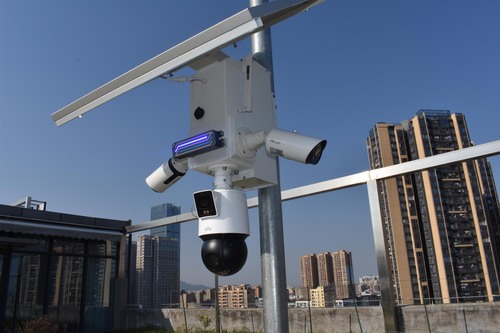

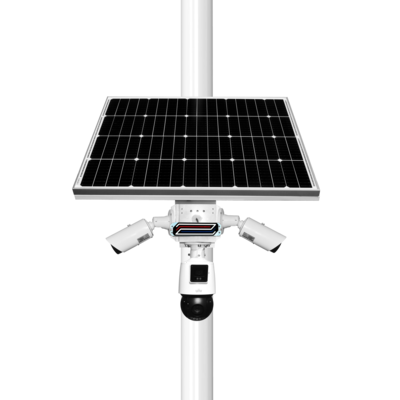

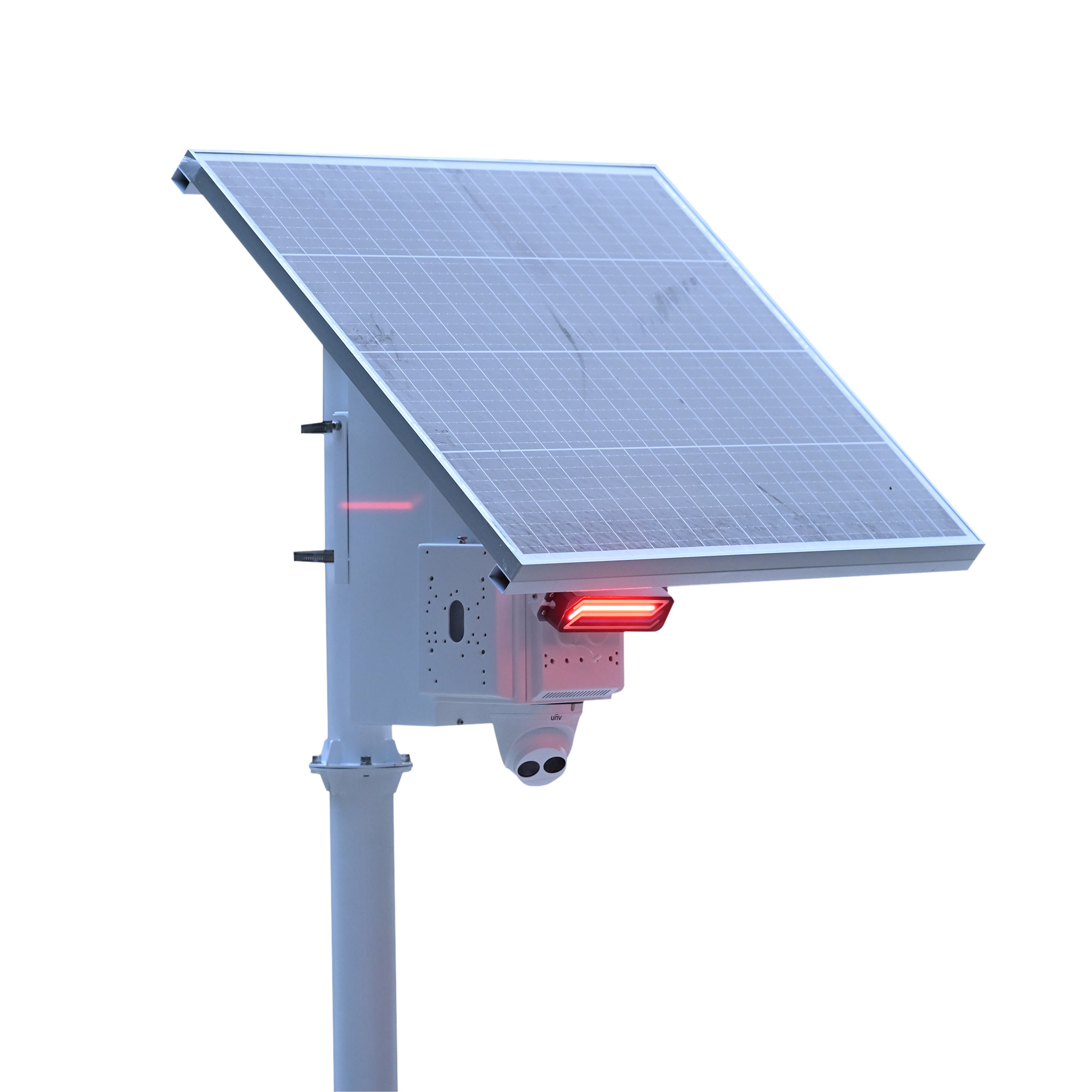

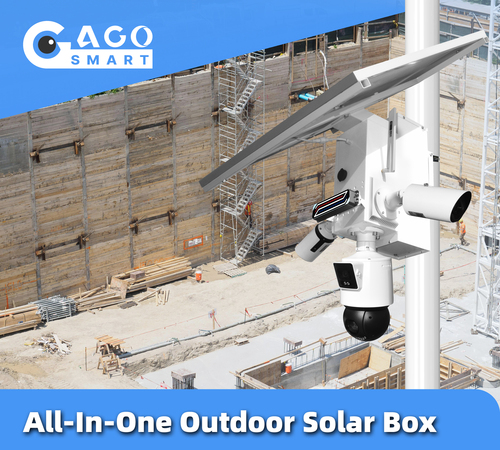

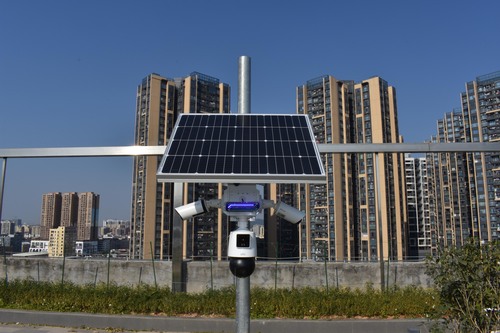

All In One Solar Box

Model ：

GG-JG120H58-PD

Introduction

Specification

① With DC12V Out 2 Ports;

② With RS485 Port;

③ With 4ch PoE Switch, 3xPoE Ports(802.3af/at);

④ With 36V/120W Solar Paneland 24V/58Ah Ternary Lithium Battery;

⑤ With MPPT Solar Controllerof 100% Tracking Efficiency;

⑥ With Antennas/Horn SpeakerInstallation Design;

⑦ With StainlessHand-Carrier;

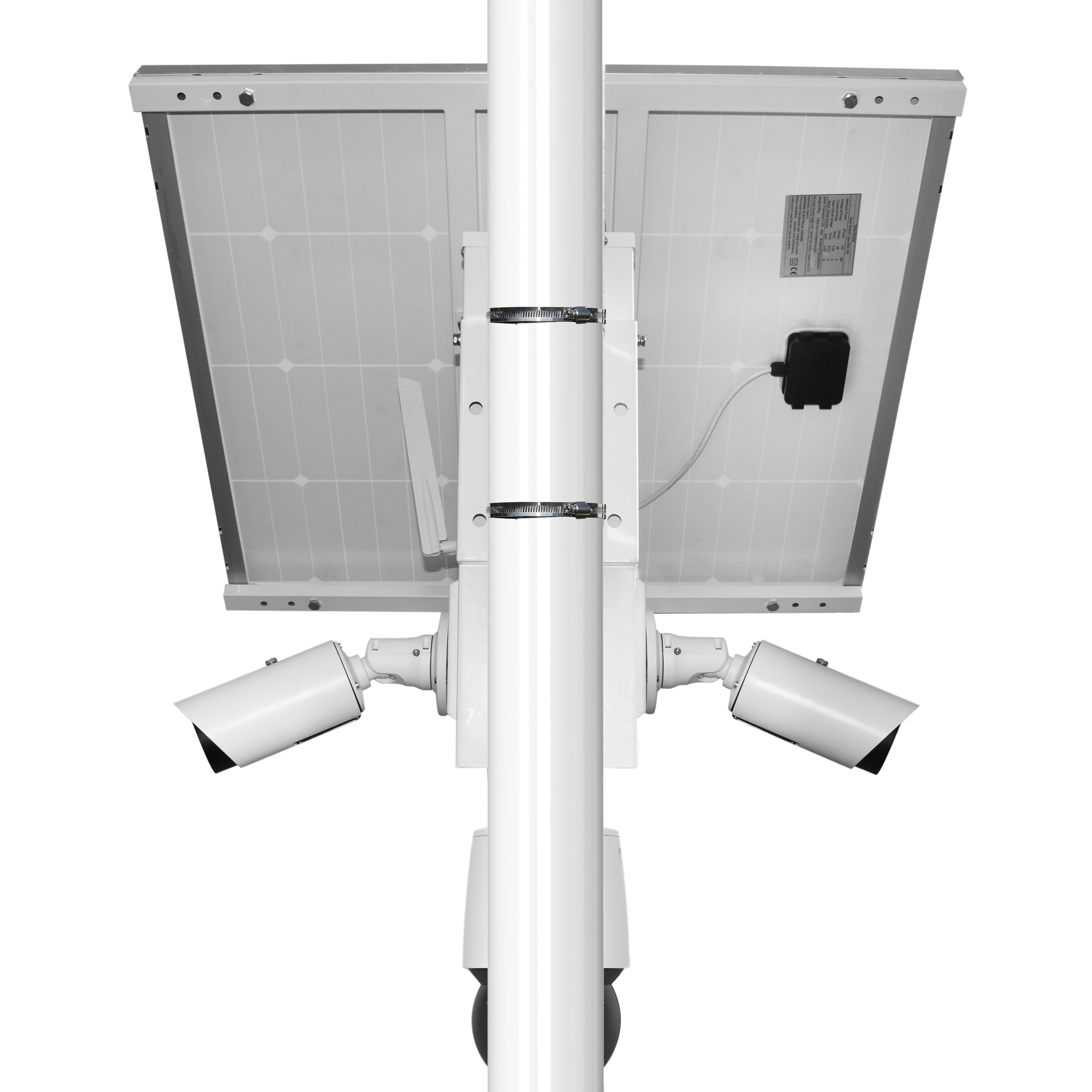

⑧ With Pole&Wall Mount(GagoPatent Fast Installation Design);

⑨ With Solar Power SystemIndicator Leds Design;

⑩ With Sound AI PoE LightSiren.

Solar Panel
Input Power	120W/36V
Max Input	60V Max
Charge Current	20A
Dis-Charge Power	240W
Power Generation/Day Cloud	600wh
Power Generation/Day Rainy	75wh
MPPT Solar Controller	3 Different Stages Different Charge Ways, Tracking Efficiency upto 100%; Support 36V/240W Solar Panel Max.
Ternary Lithium Battery
Power	24V/58Ah 1392wh (Standard 1252wh)
Power Ports
PoE Switch	3x1000M PoE+, 60W Max
DC12V Output	2CH, 60W Max
Communication
RS485	Modbus
Inspection and Maintenance
Solar System Indicators	8PCs Leds,Show Solar Panel/Battery/Charge/Dis-Charge/ Power Volume Percent Status etc
Solar Kit General Information
Solar Box Material	Metal Body with Outdoor Powder(72H), Stainless Mounting Plate
Solar Box Weight	19KG(Including Battery)
Solar Panel Weight	10KG
Sound AI PoE Light Siren(Blue/Green/White Version)
Network Part
Protocols	MQTT, Onvif, TCP/IP, UDP, IPV4/V6, HTTP, HTTPS, DHCP, DNS, ICMP,SMTP,

Ethernet	RJ-45 (10/100 Base-T)
Device Interface
POE	PoE In
Alarm	Alarm In and Alarm Out
Speaker(Audio)	Yes,4Ω3W
MIC	Yes(Upto 8 Meters Detection Distance)
Deterrence Light	White/Blue/Green(Light Intensity Adjustable by Web ) White: 12W Max Blue:3W Max Green:1.5W Max
Sound AI	Keyword Detection(HELP ME, HELP 911, EMERGENCY), Noise, Scream Detection, Glass Break and Gunshot
General Information
Power Supply	PoE/DC12V, 25W Max
Dimension	205mm x 50mm x 27mm(Thickness)
Weight	420g
Mounting	Wall and Ceiling
Water-Proof	IP67 Rated
Housing Material	Full Aluminum(CNC)
Working Temp.	-20 to 50 degree
